Module-Transmission Control C3 (D3855C)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 965225-1

Part Description: CONNECTOR - JPT SOCKET HOUSING

Connector No: D3855C

Option: Standard

Repair Kit Part Number: 68040484AA

Cavity Count: 2

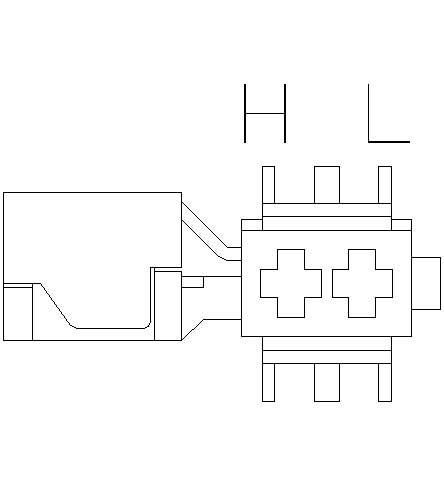

Fig 1: Module-Transmission Control C3 Connector End View
GCWD1016864Courtesy of CHRYSLER

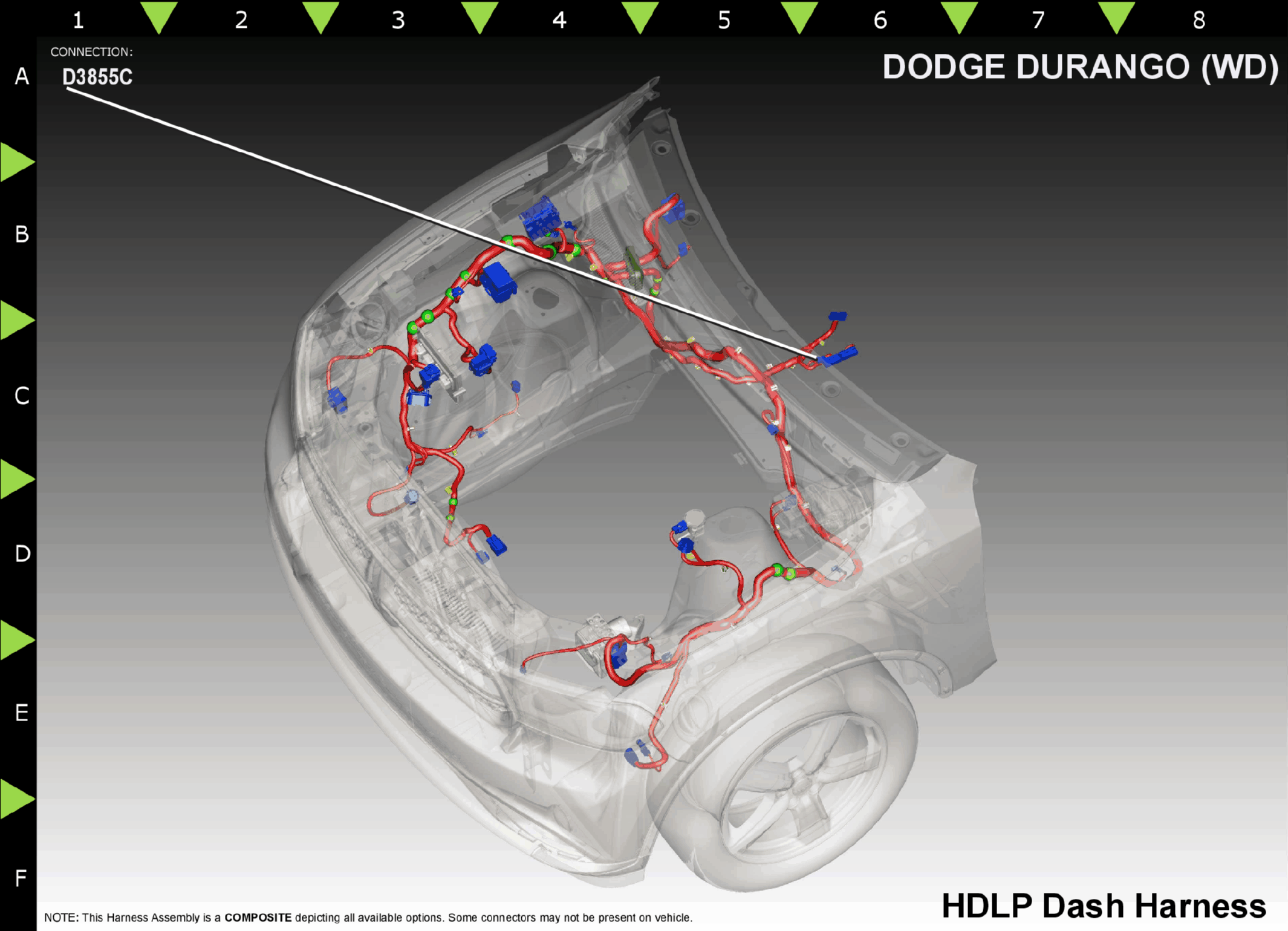

Fig 2: Module-Transmission Control C3 Component Location
GCWD1192191Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
L D64 WT/LB 22 CAN C (-) N/A
H D65 WT/LG 22 CAN C (+) N/A
(1) Pins not listed are not used for this connector
