Sensor, Speed, Input: Installation: Installation

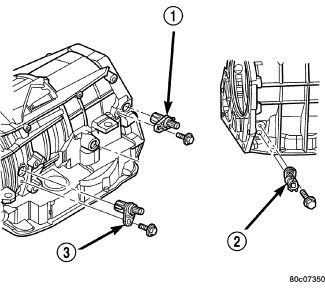

Fig 1: Installing Input Speed Sensor

Courtesy of CHRYSLER GROUP, LLC

1 - OUTPUT SPEED SENSOR

2 - LINE PRESSURE SENSOR

3 - INPUT SPEED SENSOR

1. Install the input speed sensor (3) into the transmission case. Refer to Fig 1.
2. Install the bolt to hold the input speed sensor (3) into the transmission case. Tighten the bolt to 12 N.m (105 in.lbs.).
3. Install the wiring connector onto the input speed sensor.
4. Verify the transmission fluid level. Add fluid as necessary.
5. Lower vehicle.
