Module, Fuel Pump: Description: Description
WARNING: This page is about a different car, the 2012 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

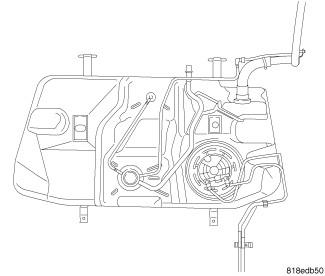

The fuel pump module is located on the top left side of the fuel tank.
The fuel pump module contains the following components:
- Mounting flange
- Electric fuel pump
- Fuel pump reservoir
- Inlet strainer
- Fuel pressure regulator
- Fuel level sending unit
- Fuel filter

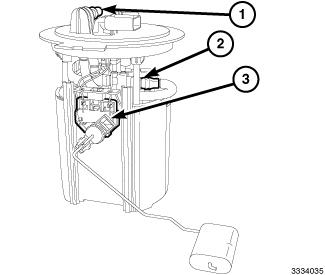

The fuel level sending unit (3) is the only serviceable component of the fuel pump module. If the electric fuel pump, fuel pressure regulator or fuel filter requires service, the fuel pump module must be replaced as an assembly.
