Sensor, Fuel Temperature: Installation: Installation

WARNING: This page is about a different car, the 2012 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

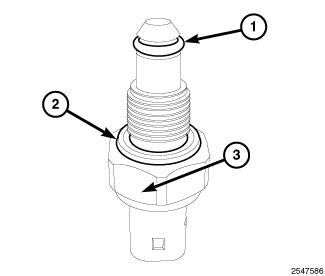

Fig 1: O-Ring Seal & Sealing Washer
GC0138085Courtesy of CHRYSLER GROUP, LLC
  1. Replace the O-ring seal (1) and sealing washer (2).

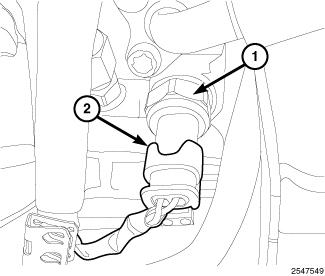

    Fig 2: Fuel Temperature Sensor Harness Connector
    GC0138005Courtesy of CHRYSLER GROUP, LLC
  2. Install the fuel temperature sensor (1). Tighten to 15 N.m (133 in. lbs.).
  3. Connect the fuel temperature sensor harness connector (2).

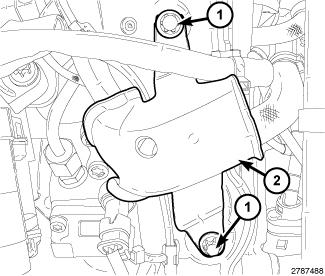

    Fig 3: Bolts & Heat Shield
    GC0137974Courtesy of CHRYSLER GROUP, LLC
  4. Install heat shield (2). Tighten bolts (1) to 9 N.m (80 in. lbs.).

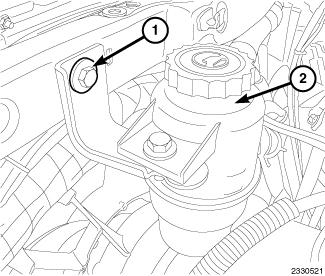

    Fig 4: Power Steering Fluid Reservoir & Mounting Bolt
    GC0137789Courtesy of CHRYSLER GROUP, LLC
  5. Install coolant fan assembly. Refer to FAN, COOLING, INSTALLATION .
  6. Install the power steering reservoir (2). Tighten bolt (1) to 12 N.m (106 in. lbs.).

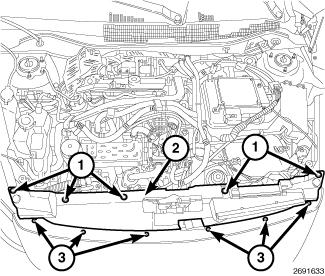

    Fig 5: Upper Radiator Closure Panel
    GC0137788Courtesy of CHRYSLER GROUP, LLC
  7. Install the radiator closure panel (2) and securely tighten the bolts (1), screws (3).
    Fig 6: Quarter Turn Lock Tabs & Air Inlet Duct
    GC0137828Courtesy of CHRYSLER GROUP, LLC
  8. Install the air inlet duct (1).
  9. Connect the negative battery cable.
  10. Install engine cover (1).
