Pcm Diesel

WARNING: This page is about a different car, the 2012 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

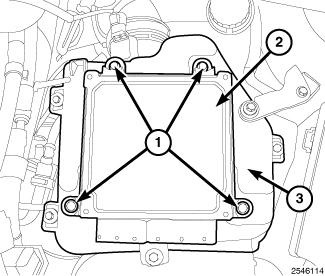

Fig 1: Identifying Powertrain Control Module Components
GC0137804Courtesy of CHRYSLER GROUP, LLC
  1. Install Powertrain Control Module (PCM) onto the air cleaner housing. Tighten bolts to 11 N.m (97 in. lbs.).

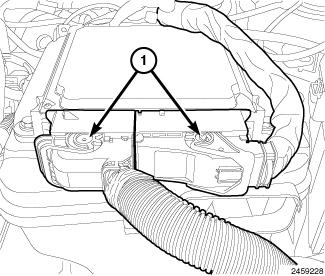

    Fig 2: PCM Harness Connectors
    GC0137805Courtesy of CHRYSLER GROUP, LLC
  2. Connect both PCM (2) harness connectors.
  3. Connect negative battery cable.
  4. Reprogram the PCM. Refer to MODULE, POWERTRAIN CONTROL, STANDARD PROCEDURE .
