Module-Fuel Pump Control (D2792A)

Harness-Family: Fuel_Tank

Color: LIGHT GRAY

Gender: FEMALE

Part Number: 54200410

Part Description: Not Available

Connector No: D2792A

Option: Standard

Repair Kit Part Number: 05013978AA

Cavity Count: 4

Fig 1: Module-Fuel Pump Control Connector End View

Courtesy of CHRYSLER

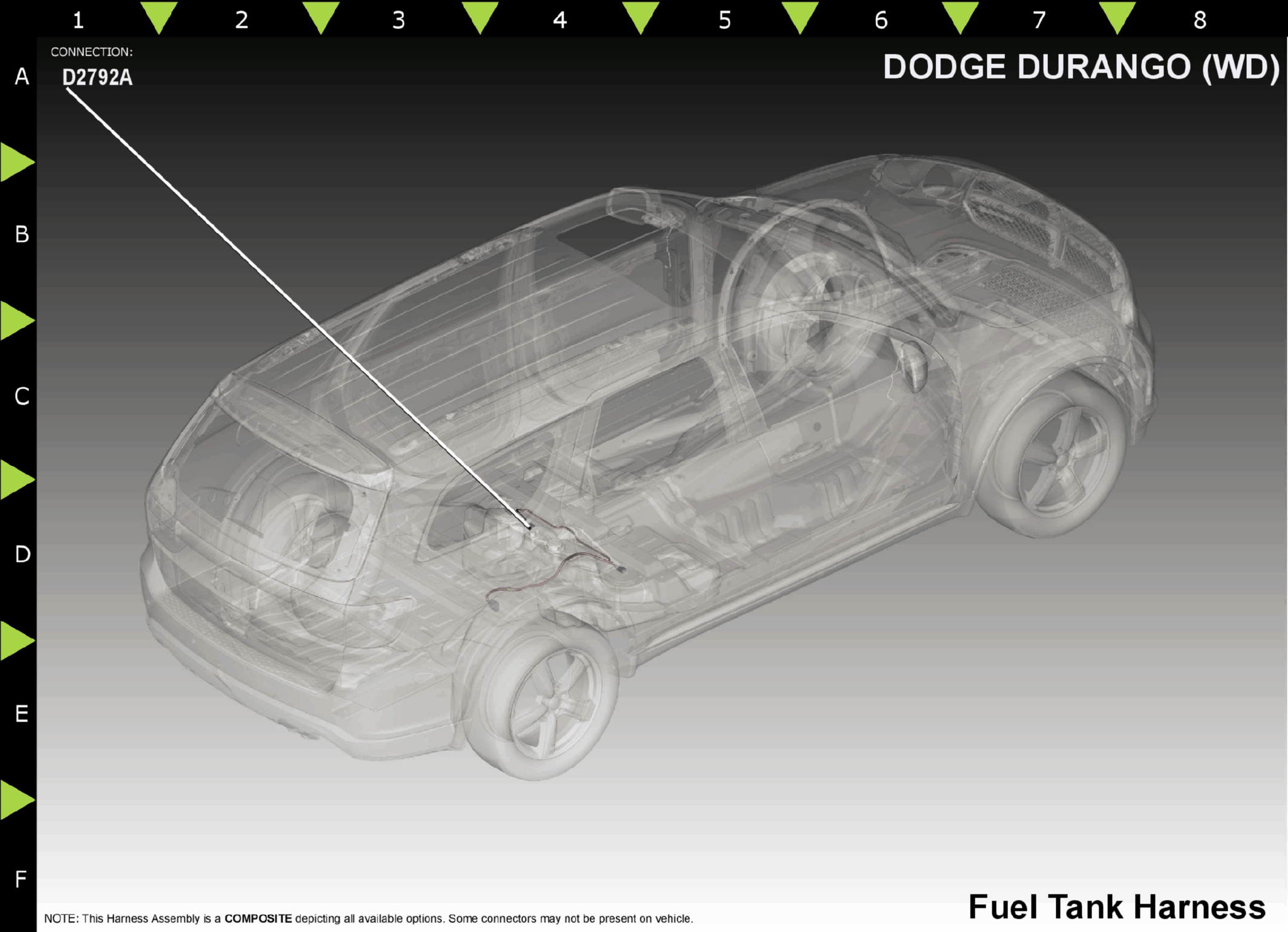

Fig 2: Module-Fuel Pump Control Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z916

GROUND

N/A

DB/WT

FUEL LEVEL SENSOR SIGNAL

N/A

DB/OR

FUEL PUMP CONTROL OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
