Module-Inverter (D3920A)

Harness-Family: Seat_Pass

Color: BLACK

Gender: FEMALE

Part Number: 1456471

Part Description: Not Available

Connector No: D3920A

Option: Standard

Repair Kit Part Number: 68137873AA

Cavity Count: 8

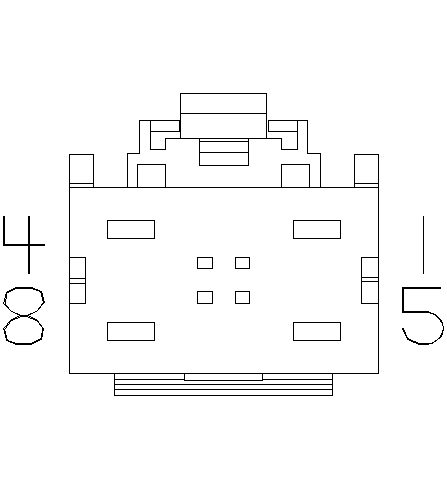

Fig 1: Module-Inverter Connector End View

GCWD1006308

Courtesy of CHRYSLER

Fig 2: Module-Inverter Component Location

GCWD1191751

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

P802

LG/OR

14

110 VOLT AC LINE 2

N/A

4

A904

RD

14

FUSED B(+)

N/A

5

P801

LG

16

110 VOLT AC LINE 1

N/A

6

P807

LG/LB

22

INVERTER SWITCH SIGNAL

N/A

7

P806

LG/WT

22

INVERTER STATUS INDICATOR DRIVER

N/A

8

Z919

BK

14

GROUND

N/A
