Heated Seat Module - Installation

INSTALLATION

CAUTION: Properly align the Heated Seat Module (HSM) retaining tabs to the driver seat bottom pan, prior to engagement. Failure to follow these instructions may result in damage to the HSM.





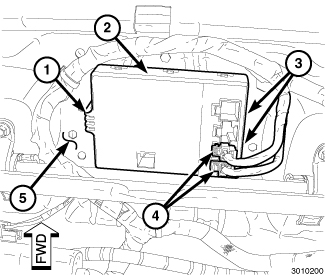

1. Position the Heated Seat Module (HSM) (2) to the driver seat and engage the two outboard HSM retaining tabs (3) to the seat bottom pan (5). Make sure the retaining tabs are correctly engaged to the seat bottom pan.
2. Engage the inboard HSM retaining tab (1). Make sure the retaining tab is fully engaged to the seat bottom pan.
3. Connect the electrical connectors (4) to the HSM.
4. Install the seat Seat - Installation
5. Reconnect the negative battery cable.
6. Verify proper heated seat system operation.
