A/C And Heater Control Module - Installation

INSTALLATION





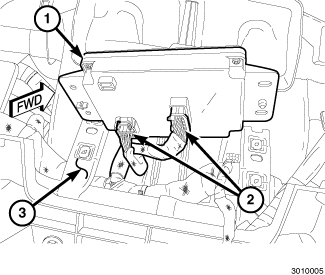

1. Position the A/C heater module (1) to the instrument panel support (3) and connect the two wire harness connectors (2).

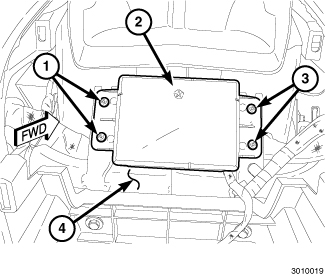

2. Align the A/C heater module (2) to the two locator holes in the instrument panel support (4). and install the module onto the support.
3. Install the four screws (1 and 3) that secure the A/C heater module to the instrument panel support. Tighten the screws to 2 Nm (17 in. lbs.).
4. Install the instrument panel center bezel Instrument Panel Center Bezel - Installation
5. Reconnect the negative battery cable.
6. Initiate the Actuator Calibration function using a scan tool HVAC Verification Test.
