Sun Sensor - Installation

INSTALLATION

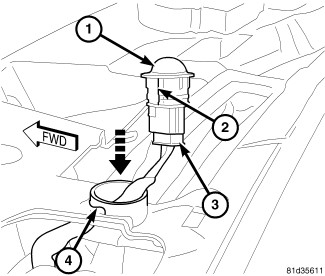

1. Position the sun sensor assembly (1) to the top of the instrument panel (4) and connect the wire harness connector (3).
2. Align the tab (2) on the sun sensor assembly with the opening in the instrument panel.
3. Gently push the sun sensor assembly into the instrument panel until the sensor snap retainers are securely engaged.
4. Install the defroster grille Defroster Grille - Installation.
5. Reconnect the negative battery cable.
