Knock Sensor - Installation

2.4L






CAUTION: Always torque knock sensors to the correct torque specification. Over or under tightening effects knock sensor performance. Ensure the electrical connector orientation is at the sic O'clock position to the engine block.

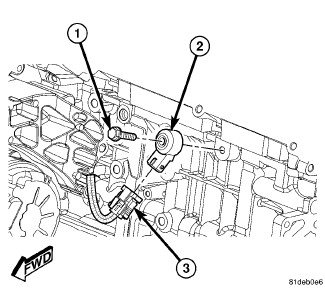

1. Install knock sensor (2) and bolt (1) to engine block. Tighten bolt to 22 Nm (195 in. lbs.).
2. Connect electrical connector (3) to knock sensor (2).
3. Connect negative battery cable, tighten nut to 4.5 Nm (40 in. lbs.).
