Fuel Level Sending Unit And Sensor - Installation

INSTALLATION






NOTE: Correctly position the fuel level sensor to the fuel pump module housing, using the mark made during the removal procedure. Correctly install the positive and negative electrical wire to the fuel level sensor.

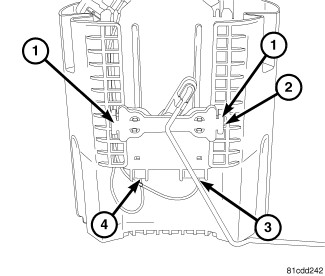

1. Correctly position fuel level sensor retaining tabs (1) to fuel pump module housing (2). Press to lock the fuel level sensor into place on the fuel pump module.
2. Install positive electrical wire (4) to fuel level sensor.
3. Install negative electrical wire (3) to fuel level sensor.
4. Install fuel pump module, Fuel Tank - Installation.
