Module-Occupant Restraint Controller C1 (D3834A)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: 1326018-1

Part Description: PLUG ASSEMBLY, 32P UNSEALED 0.64MM CONN

Connector No: D3834A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 32

Fig 1: Module-Occupant Restraint Controller C1 Connector End View
GCWD1025410Courtesy of CHRYSLER

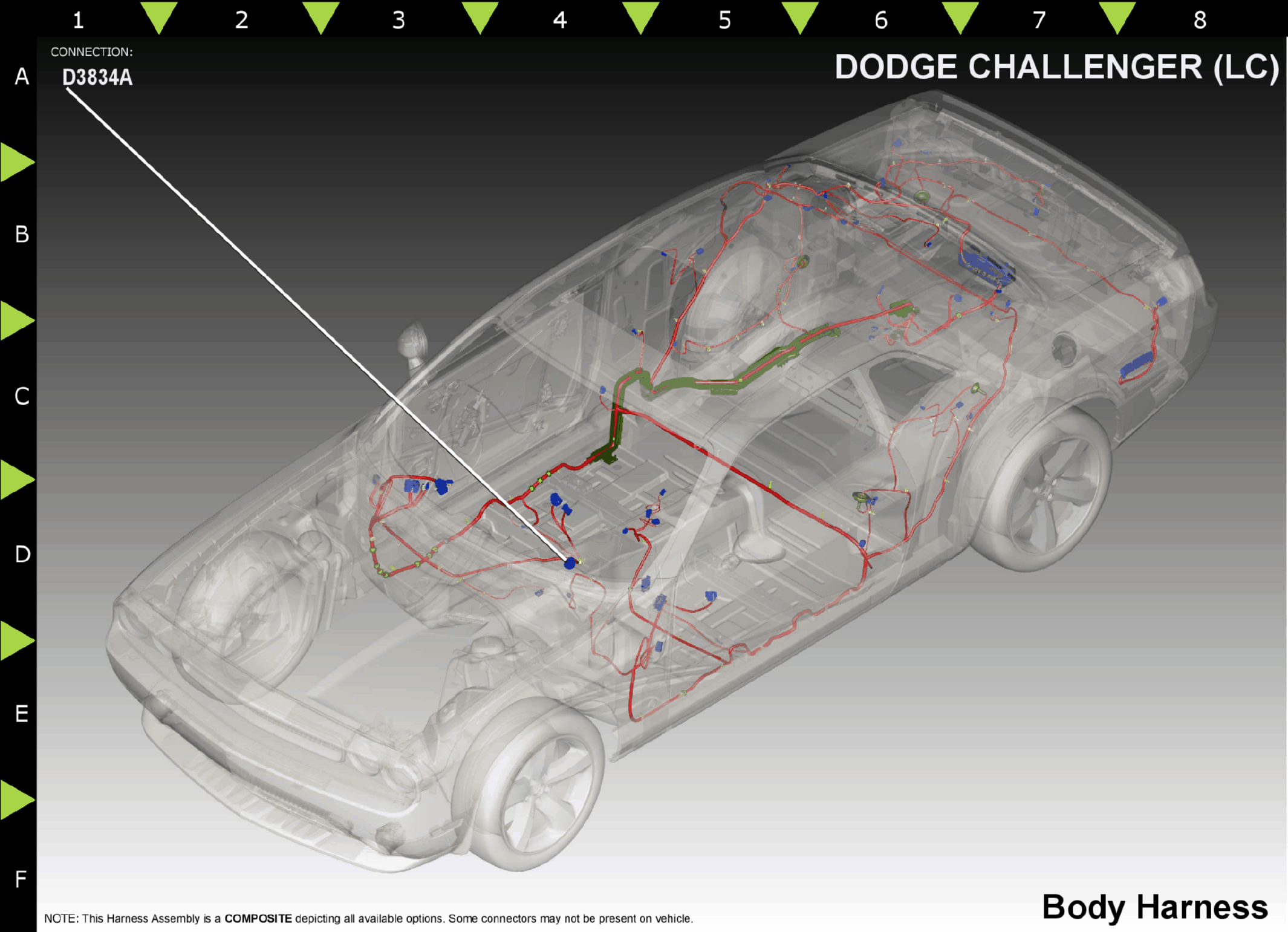

Fig 2: Module-Occupant Restraint Controller C1 Component Location
GCWD1208717Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 R503 LG/YL 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
2 R505 LG/DG 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
3 R506 LB/DG 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
4 R504 LB/YL 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
5 R53 LG/YL 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
6 R55 LG/DG 20 DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
7 R56 LB/DG 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1 N/A
8 R54 LB/YL 20 PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2 N/A
9 R283 LB/DG 20 PASSENGER SEAT OCCUPANT DETECTION SIGNAL N/A
10 R58 LB/GY 20 PASSENGER SEAT BELT SWITCH SENSE N/A
11 R284 LB/LG 20 PASSENGER SEAT OCCUPANT DETECTION RETURN N/A
12 R60 LB/TN 20 PASS SEAT BELT BUCKLE SWITCH SENSE N/A
13 R261 LB/WT 20 DRIVER SEAT POSITION SENSOR DATA N/A
15 R13 LG/TN 20 LEFT SIDE IMPACT SENSOR 1 SIGNAL N/A
16 R16 BR/LG 20 RIGHT SIDE IMPACT SENSOR 1 GROUND N/A
17 R263 LB/VT 20 DRIVER SEAT POSITION SENSOR VOLTAGE N/A
19 R15 TN 20 LEFT SIDE IMPACT SENSOR 1 GROUND N/A
20 R150 DB 20 LEFT SIDE IMPACT PRESSURE SENSOR GROUND N/A
21 R160 LG 20 RIGHT SIDE IMPACT PRESSURE SENSOR GROUND N/A
22 R130 LG/DB 20 LEFT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
23 R140 DB/LG 20 RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL N/A
24 R14 TN/LG 20 RIGHT SIDE IMPACT SENSOR 1 SIGNAL N/A
25 R5 LB/VT 20 LEFT SEAT THORAX SQUIB 1 LINE 2 N/A
26 R7 LG/GY 20 LEFT SEAT THORAX SQUIB 1 LINE 1 N/A
27 R8 GY/LG 20 RIGHT SEAT THORAX SQUIB 1 LINE 1 N/A
28 R6 VT/LB 20 RIGHT SEAT THORAX SQUIB 1 LINE 2 N/A
29 R1 LB/WT 20 LEFT CURTAIN SQUIB 1 LINE 2 N/A
30 R3 LB/OR 20 LEFT CURTAIN SQUIB 1 LINE 1 N/A
31 R4 OR/LB 20 RIGHT CURTAIN SQUIB 1 LINE 1 N/A
32 R2 WT/LB 20 RIGHT CURTAIN SQUIB 1 LINE 2 N/A
(1) Pins not listed are not used for this connector
