Module-Occupant Restraint Controller C2 (D3834B)

Harness-Family: IP

Color: YELLOW

Gender: FEMALE

Part Number: 1326018-2

Part Description: PLUG ASSEMBLY, 32P UNSEALED 0.64MM CONN

Connector No: D3834B

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 32

Fig 1: Module-Occupant Restraint Controller C2 Connector End View

Courtesy of CHRYSLER

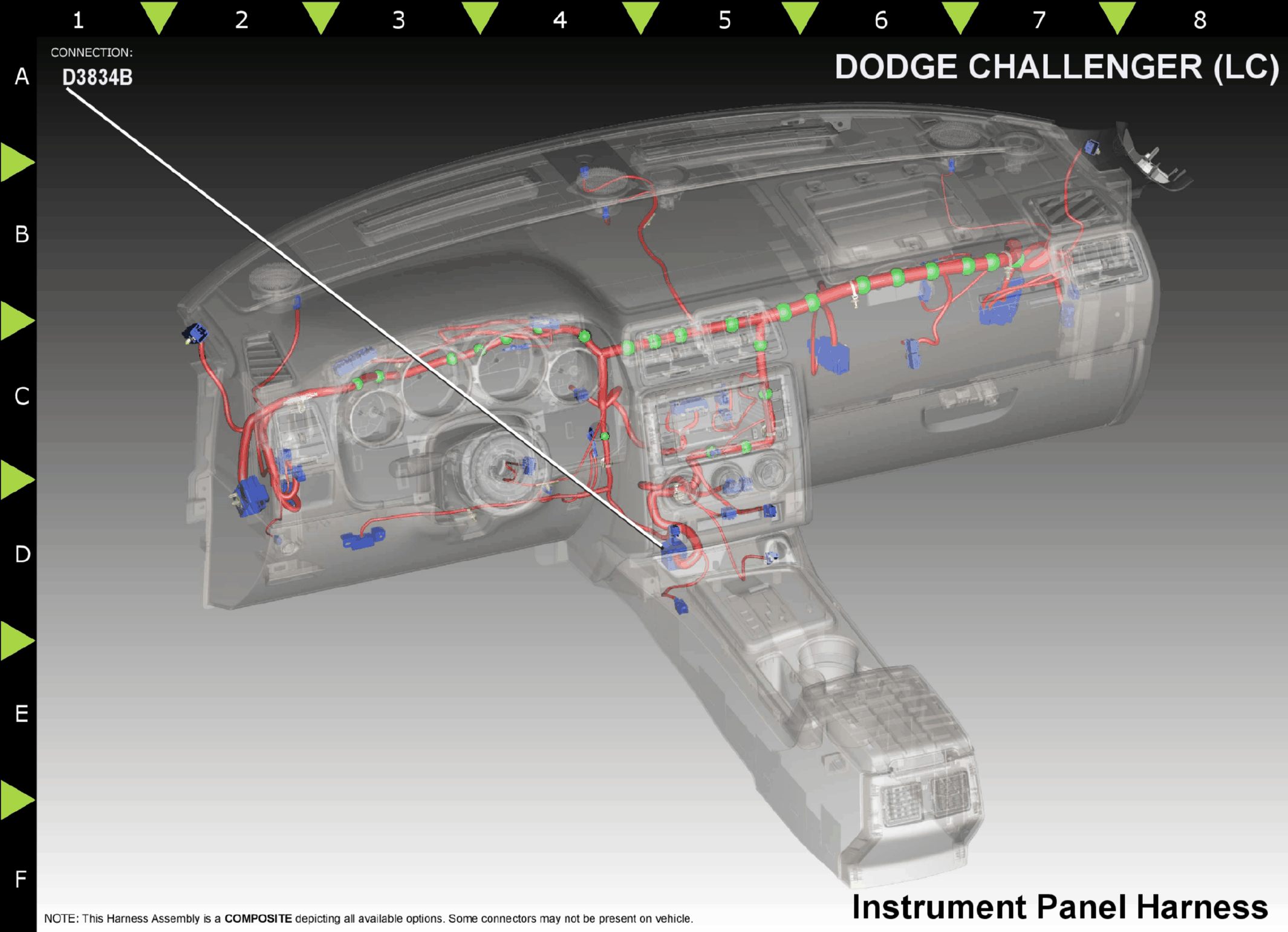

Fig 2: Module-Occupant Restraint Controller C2 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R43

LG/BR

DRIVER SQUIB 1 LINE 2

N/A

R45

LG/OR

DRIVER SQUIB 1 LINE 1

N/A

R63

LG/WT

DRIVER SQUIB 2 LINE 1

N/A

R61

LG/VT

DRIVER SQUIB 2 LINE 2

N/A

R42

LB/BR

PASSENGER SQUIB 1 LINE 2

N/A

R44

LB/OR

PASSENGER SQUIB 1 LINE 1

N/A

R64

LB/WT

PASSENGER SQUIB 2 LINE 1

N/A

R62

LB/VT

PASSENGER SQUIB 2 LINE 2

N/A

R59

LG/TN

DRIVER SEAT BELT BUCKLE SWITCH GROUND

N/A

R57

LG/GY

DRIVER SEAT BELT BUCKLE SWITCH SENSE

N/A

R82

WT/LB

RIGHT FRONT IMPACT SENSOR GROUND

N/A

R17

LEFT SIDE IMPACT SENSOR 2 SIGNAL

N/A

R19

LG/WT

LEFT SIDE IMPACT SENSOR 2 GROUND

N/A

D65

WT/BK

CAN C (+)

N/A

F201

PK/OR

FUSED IGNITION RUN/START CONTROL OUTPUT

N/A

R18

RIGHT SIDE IMPACT SENSOR 2 SIGNAL

N/A

R20

WT/LG

RIGHT SIDE IMPACT SENSOR 2 GROUND

N/A

R80

VT/LB

RIGHT FRONT IMPACT SENSOR SIGNAL

N/A

R81

LB/WT

LEFT FRONT IMPACT SENSOR GROUND

N/A

R79

LB/VT

LEFT FRONT IMPACT SENSOR SIGNAL

N/A

Z939

BK/LG

GROUND

N/A

D64

WT/LB

CAN C (-)

N/A

F500

DG/PK

FUSED OUTPUT (RUN)

N/A

⁽¹⁾	Pins not listed are not used for this connector
