Module-Steering Control C1 (D3816A)

Harness-Family: IP

Color: BLACK

Gender: FEMALE

Part Number: 1924396-1

Part Description: 14P MCON 1.2 SCCM INNER HOUSING - OUTER HOUSING YELLOW

Connector No: D3816A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 14

Fig 1: Module-Steering Control C1 Connector End View
GCWD1016962Courtesy of CHRYSLER

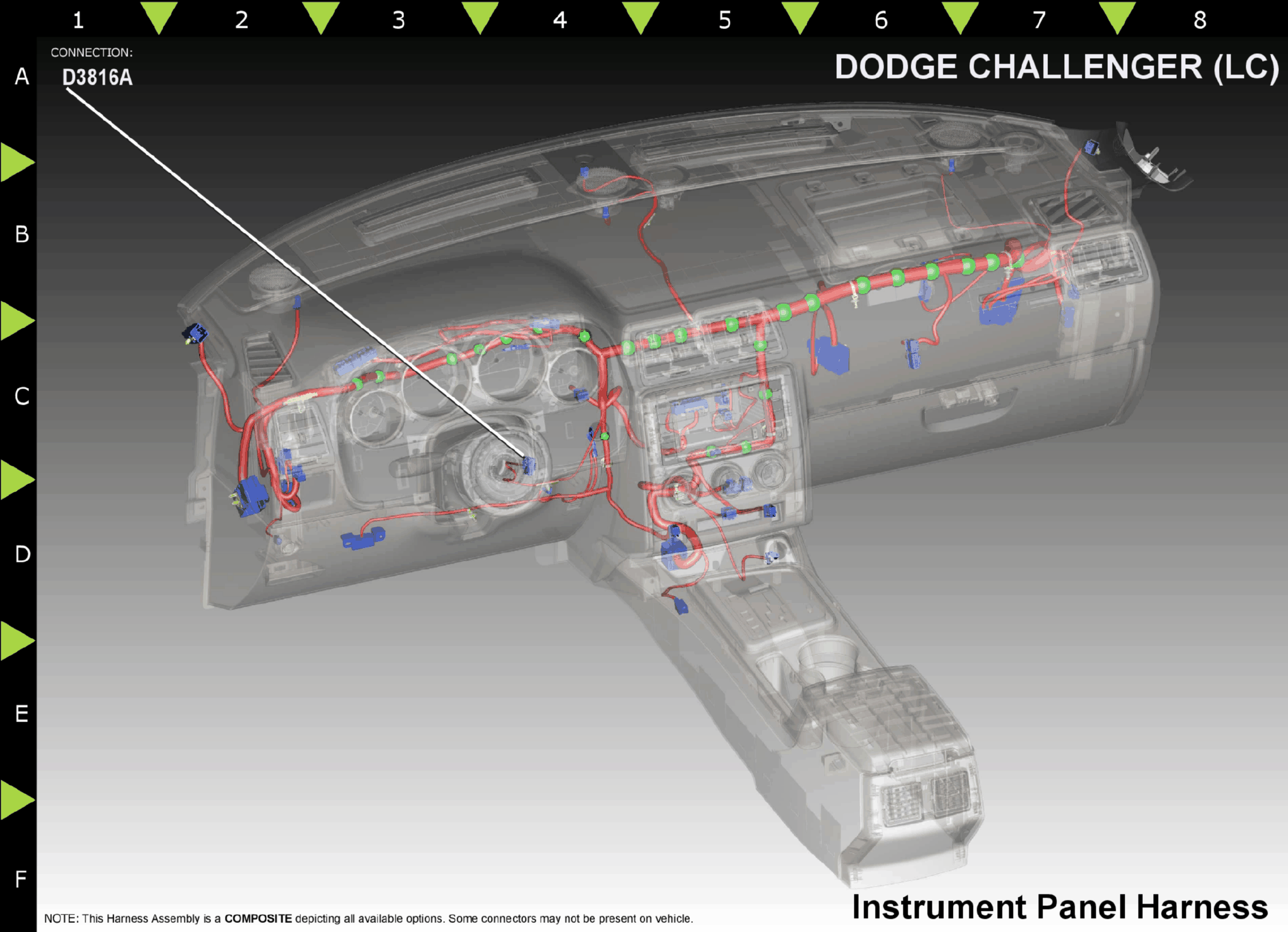

Fig 2: Module-Steering Control C1 Component Location
GCWD1208293Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D64 WT/LB 22 CAN C (-) N/A
2 D65 WT/BK 22 CAN C (+) N/A
3 Z910 BK/TN 20 GROUND N/A
4 A913 RD/GY 20 FUSED B(+) N/A
6 C986 GY/DB 16 HEATED STEERING WHEEL RETURN N/A
7 C91 DB/LG 16 HEATED STEERING WHEEL FEED N/A
8 R43 LG/BR 20 DRIVER SQUIB 1 LINE 2 N/A
9 R45 LG/OR 20 DRIVER SQUIB 1 LINE 1 N/A
10 R61 LG/VT 20 DRIVER SQUIB 2 LINE 2 N/A
11 R63 LG/WT 20 DRIVER SQUIB 2 LINE 1 N/A
(1) Pins not listed are not used for this connector
