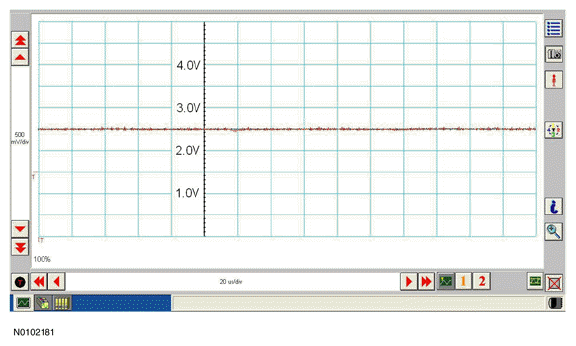

Fig 1: Screen Display - CAN Circuits Shorted Together
Courtesy of FORD MOTOR CO.
In the event that the data (+) and data (-) circuits become shorted together, the signal stays at base voltage (2.5V) continuously and all communication capabilities are lost.
