PINPOINT TEST FF: Power Steering Pressure (PSP) Switch: Introduction

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2012 Lincoln Navigator L, 2012 Lincoln Navigator, 2012 Lincoln MKZ, 2012 Lincoln MKX, and 2012 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

power steering pressure (PSP) switch (3N824)
harness circuits: PSPSW
powertrain control module (PCM) (12A650)

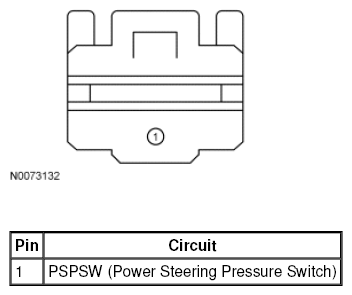

Fig 1: Identifying Power Steering Pressure (PSP) Switch Connector
Courtesy of FORD MOTOR CO.

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES article.

Connector	Pin	Circuit
140 PIN	E65	PSPSW
