U1434-8F-Implausible Data Received From Driver Blind Spot Sensor-Erratic: Notes

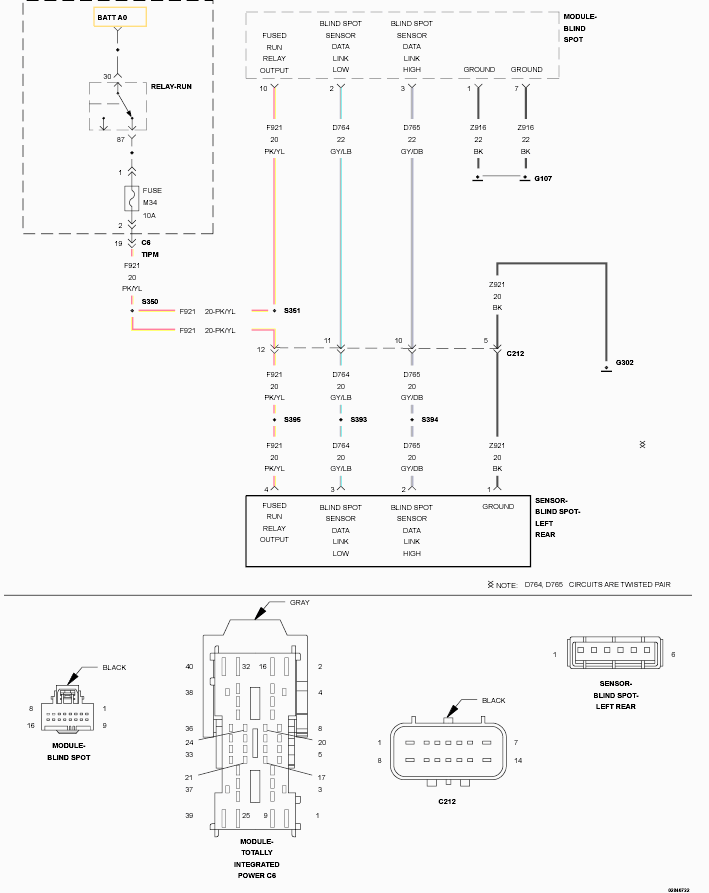

Fig 1: Driver Blind Spot Sensor Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
