Module-Drive Train Control C1 (D3872A)

Harness-Family: Body

Color: BLUE

Gender: FEMALE

Part Number: 7283-6456-90

Part Description: KAIZEN YESC SUB ASSEMBLY

Connector No: D3872A

Option: Standard

Repair Kit Part Number: 68065019AA

Cavity Count: 16

Fig 1: Module-Drive Train Control C1 Connector End View

Courtesy of CHRYSLER

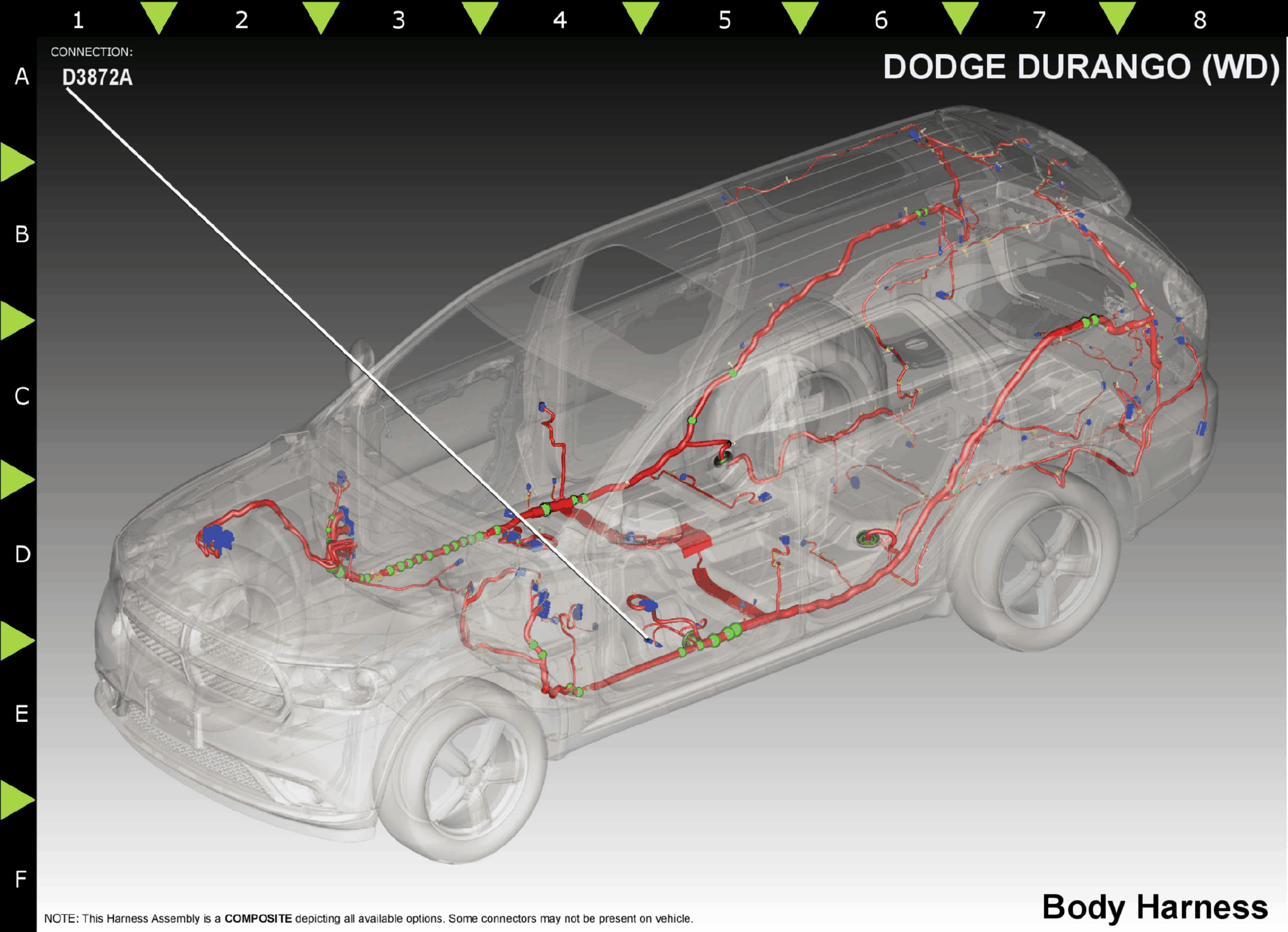

Fig 2: Module-Drive Train Control C1 Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	T301	DG	20	SWITCHED BATTERY SOLENOID SUPPLY	N/A
10	K594	BR	22	DRIVETRAIN SENSOR RETURN	N/A
11	K504	BR	22	DRIVETRAIN 5 VOLT SUPPLY	N/A
3	T313	YL	22	MODE SENSOR SIGNAL	N/A
4	F943	PK	18	FUSED IGNITION RUN-START CONTROL OUTPUT	N/A
5	D51	WT	22	CAN C (-)	N/A
6	D52	WT	22	CAN C (+)	N/A
9	T317	YL	20	STEP MOTOR CONTROL D	N/A
