Module-Power-Blower Motor-Rear C1 (D6608A)

Harness-Family: HVAC_Rear

Color: BLACK

Gender: FEMALE

Part Number: 12041429

Part Description: Not Available

Connector No: D6608A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 5

Fig 1: Module-Power-Blower Motor-Rear C1 Connector End View

Courtesy of CHRYSLER

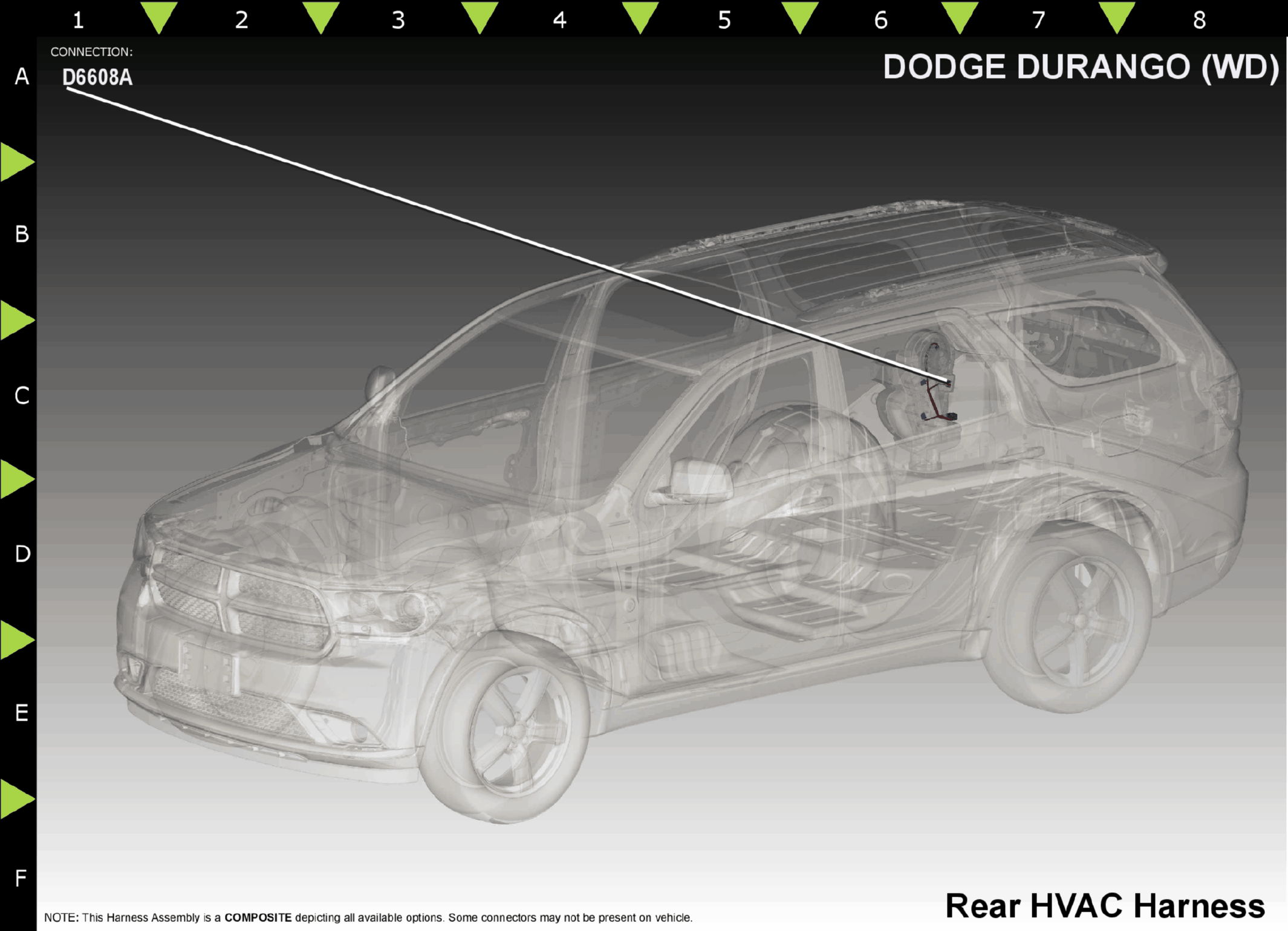

Fig 2: Module-Power-Blower Motor-Rear C1 Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Z923	BK	20	GROUND	N/A
2	C57	DB	22	REAR BLOWER MOTOR CONTROL	N/A
3	C51	LB	16	FUSED REAR BLOWER MOTOR RELAY OUTPUT	N/A
4	C931	BK	16	REAR FAN SENSE RETURN	N/A
5	C31	RD	16	REAR FAN SENSE	N/A
