Module-Powertrain Control C3 (D3838C)

Harness-Family: HDLP_Dash

Color: NATURAL

Gender: FEMALE

Part Number: 6-1326728-2

Part Description: NGC HEADER CONNECTION - INDEX C

Connector No: D3838C

Option: Standard

Repair Kit Part Number: 05083224AA

Cavity Count: 38

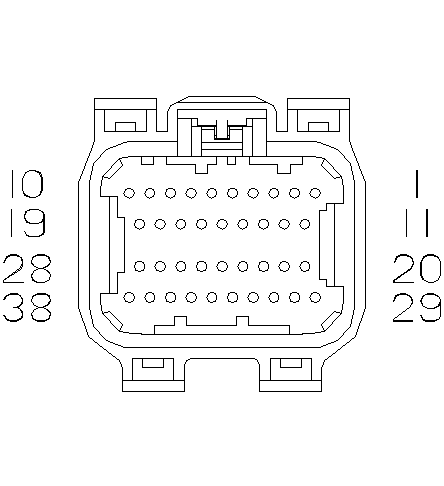

Fig 1: Module-Powertrain Control C3 Connector End View

Courtesy of CHRYSLER

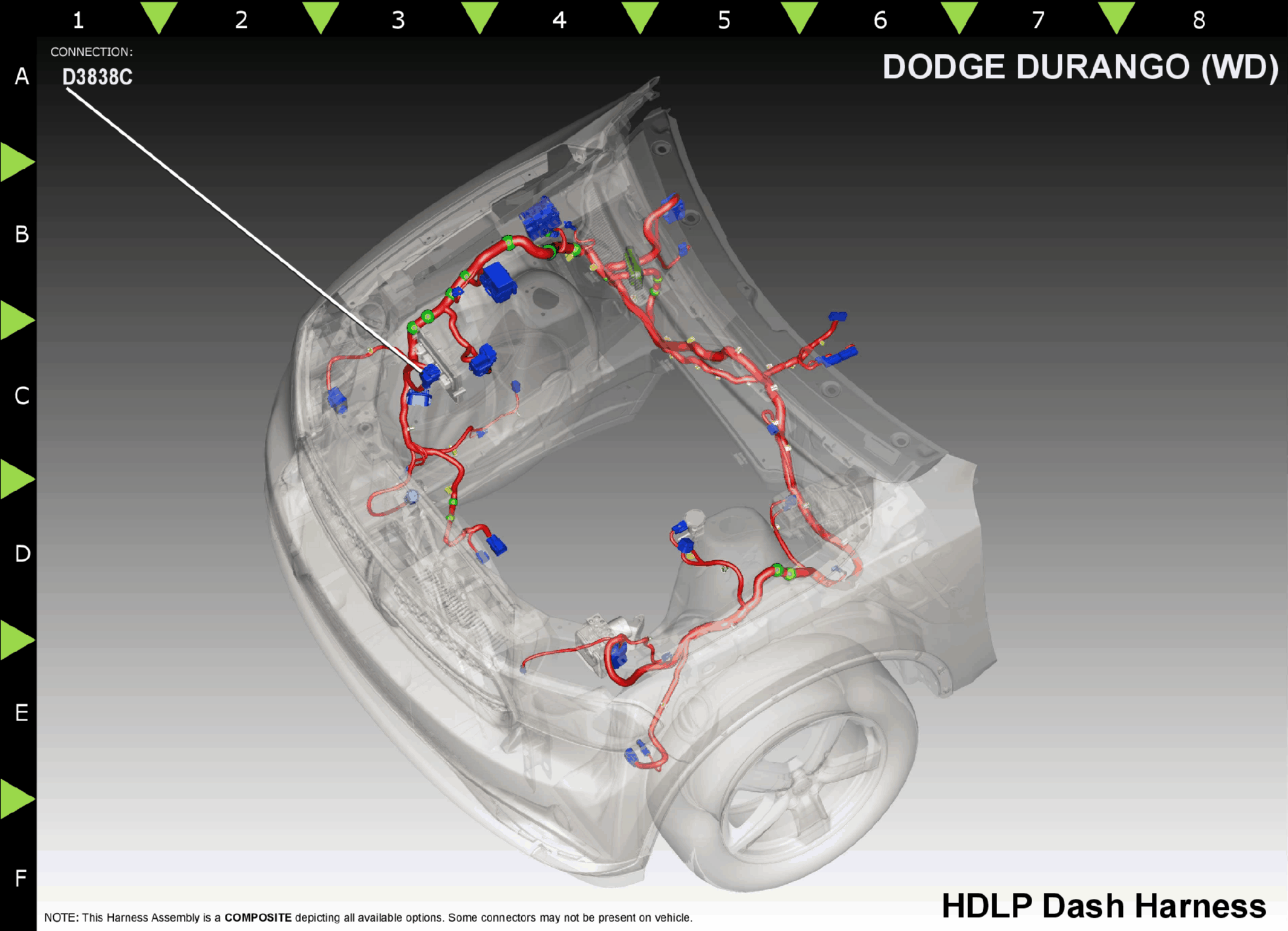

Fig 2: Module-Powertrain Control C3 Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
C1	T110	DG	18	VACUUM PUMP RELAY CONTROL	N/A
C10	K399	BR	20	O2 2/2 HEATER CONTROL	N/A
C11	C13	LB	20	A/C CLUTCH CONTROL	N/A
C14	B16	LB	20	BRAKE SIGNAL 2	N/A
C16	K167	BR	20	APP SENSOR GROUND 1	N/A
C17	K400	BR	20	APP SENSOR GROUND 2	N/A
C19	F342	BR	16	ASD CONTROL OUTPUT	N/A
C20	K52	DB	20	EVAP PURGE CONTROL	N/A
C23	B15	DG	20	BRAKE SIGNAL 1	N/A
C25	K23	BR	20	APP SIGNAL 1	N/A
C28	F342	BR	16	ASD CONTROL OUTPUT	N/A
C29	K70	DB	20	EVAP PURGE SOL SIGNAL	N/A
C3	K51	BR	20	ASD RELAY CONTROL	N/A
C33	G24	VT	20	EOT SIGNAL	N/A
C35	K107	VT	20	ESM SIGNAL	N/A
C36	K29	WT	20	APP SIGNAL 2	N/A
C37	K31	BR	20	FUEL PUMP CONTROL	N/A
C38	T752	DG	20	STARTER RELAY CONTROL	N/A
C5	K454	BR	20	MDS SOL CONTROL 7	N/A
C6	K451	BR	20	MDS SOL CONTROL 1	N/A
C8	G62	VT	20	OIL PRESSURE SOL CONTROL	N/A
C8	K442	DB	20	VCT CONTROL	N/A
C9	K299	BR	20	O2 1/2 HEATER CONTROL SUPPLY	N/A
