Module-Powertrain Control C4 (D3838D)

Harness-Family: Engine

Color: GREEN

Gender: FEMALE

Part Number: 7229562560

Part Description: Not Available

Connector No: D3838D

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

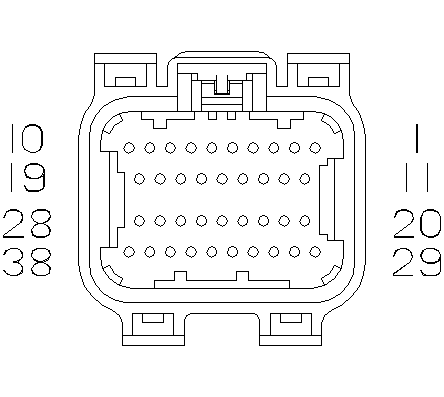

Fig 1: Module-Powertrain Control C4 Connector End View

Courtesy of CHRYSLER

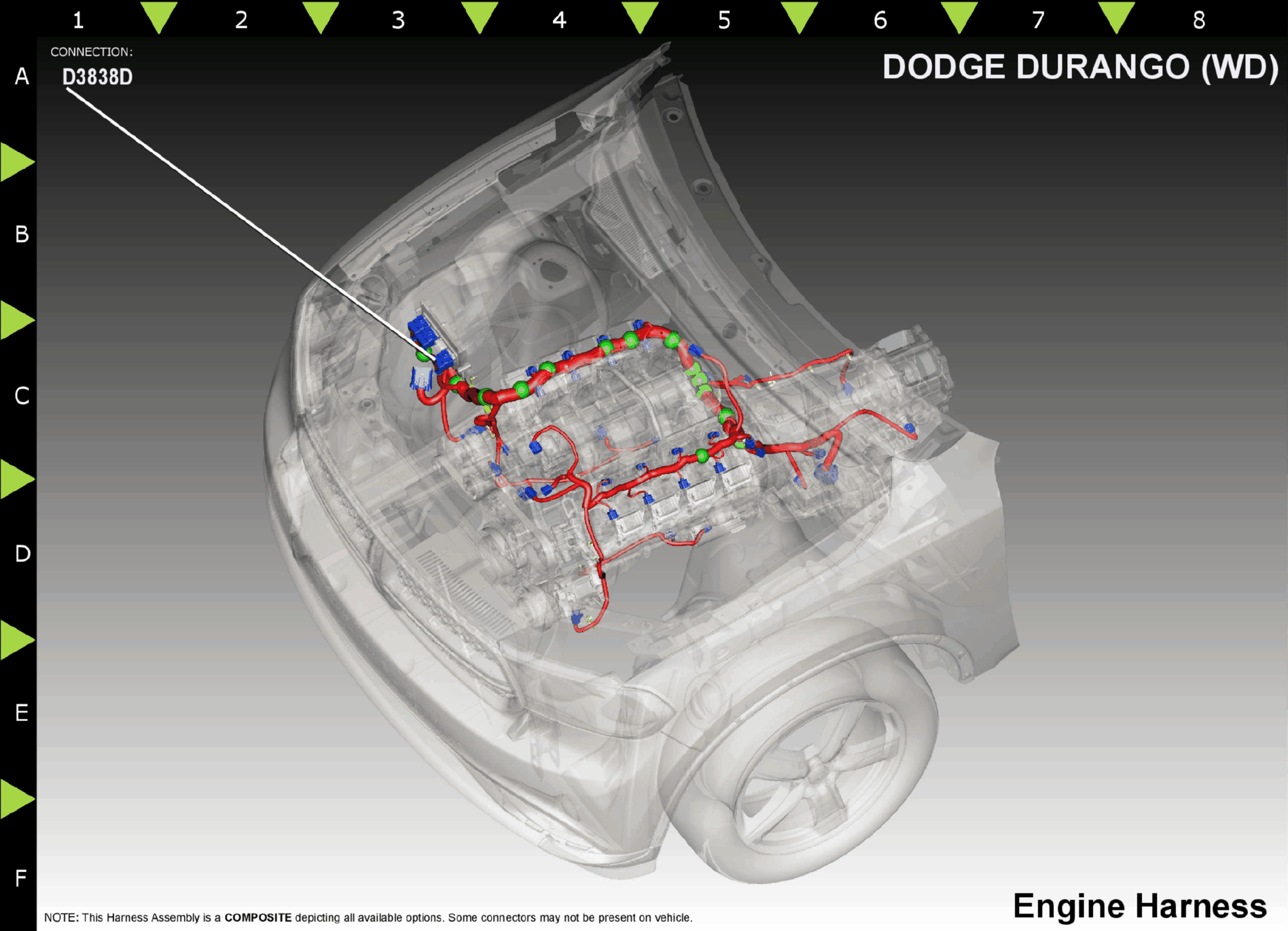

Fig 2: Module-Powertrain Control C4 Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	T60	YL	20	OD CONTROL (RFE)/1-2/4-5 SOLENOID CONTROL (NAG1)	N/A
10	T20	WT	20	L/R CONTROL	N/A
11	T118	DG	20	LP VFS CONTROL	N/A
12	Z903	BK	16	GROUND	N/A
13	Z903	BK	16	GROUND	N/A
14	Z903	BK	16	GROUND	N/A
15	T1	LB	20	TRS T1 SIGNAL	N/A
16	T3	LB	20	TRS T3 SIGNAL	N/A
18	T15	YL	18	TRANSMISSION CONTROL	N/A
19	T16	YL	16	TRANSMISSION CONTROL OUTPUT	N/A
2	T259	YL	20	4C CONTROL	N/A
20	T48	BR	20	4C PRESSURE SIGNAL	N/A
21	T29	YL	20	UD PRESSURE SIGNAL	N/A
22	T9	DG	20	OD PRESSURE SIGNAL	N/A
26	T4	DG	20	TRS T4 SIGNAL	N/A
27	T41	YL	20	TRS T41 SIGNAL	N/A
28	T16	YL	16	TRANSMISSION CONTROL OUTPUT	N/A
29	T50	YL	20	L/R PRESSURE SIGNAL	N/A
30	T147	DG	20	2C PRESSURE SIGNAL	N/A
31	T38	YL	20	LINE PRESSURE SIGNAL	N/A
32	T14	DG	20	OUTPUT SPEED SIGNAL	N/A
33	T52	DG	20	INPUT SPEED SIGNAL	N/A
34	T13	DG	20	SPEED SENSOR GROUND	N/A
35	T54	DG	20	TRANSMISSION TEMPERATURE SIGNAL	N/A
37	T42	DG	20	TRS T42 SIGNAL	N/A
38	T16	YL	16	TRANSMISSION CONTROL OUTPUT	N/A
4	T140	YL	20	MS CONTROL	N/A
6	T219	YL	20	2C CONTROL	N/A
8	T59	YL	20	UD CONTROL	N/A
