Module-Steering Control C3 (D3816C)

Harness-Family: Steering_Wheel

Color: BLACK

Gender: FEMALE

Part Number: 1419158-1

Part Description: 1X6P GET SOCKET HOUSING ASSEMBLY

Connector No: D3816C

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 6

Fig 1: Module-Steering Control C3 Connector End View
GCWD1082939Courtesy of CHRYSLER

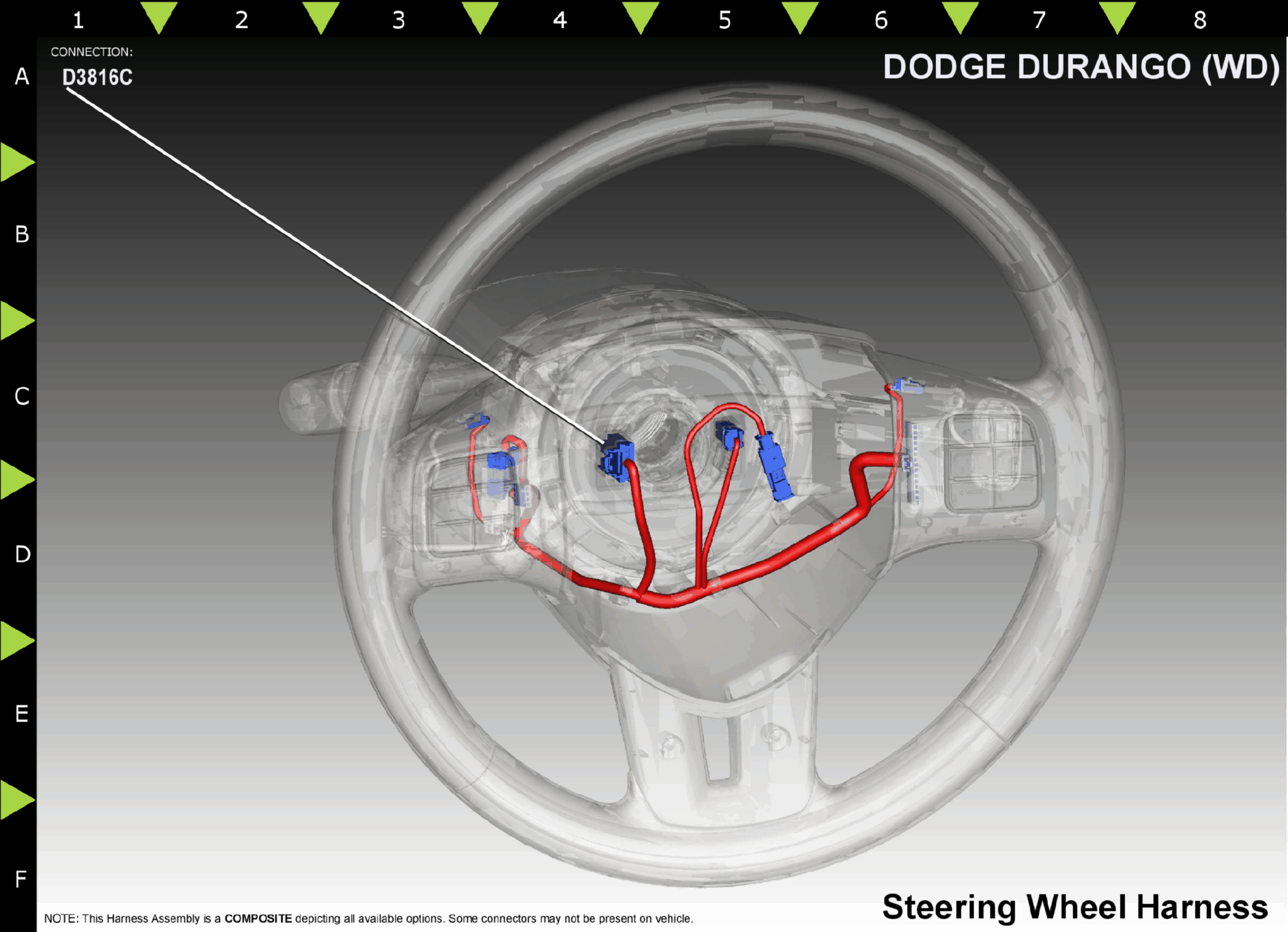

Fig 2: Module-Steering Control C3 Component Location
GCWD1183786Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 D507 BK 22 LIN BUS N/A
2 A929 VT 22 FUSED B(+) N/A
3 Z910 WT 22 GROUND N/A
4 V72 YL 22 S/C SIGNAL 2 N/A
5 V937 GY 22 S/C SWITCH GROUND N/A
6 V71 LG 22 S/C SIGNAL 1 N/A
~~ A929 VT 22 FUSED B(+) N/A
~~ V71 LG 22 S/C SIGNAL 1 N/A
~~ V72 YL 22 S/C SIGNAL 2 N/A
~~ V937 GY 22 S/C SWITCH GROUND N/A
~~ Z910 WT 22 GROUND N/A
