Module, Powertrain Control: Installation: Diesel

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

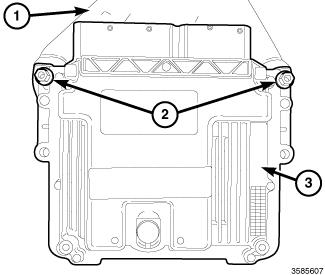

Fig 1: Nuts, PCM & Mounting Bracket
GC0152168Courtesy of CHRYSLER GROUP, LLC
  1. Install the Powertrain Control Module (PCM) (3) onto mounting bracket (1) and securely tighten the nuts (2).

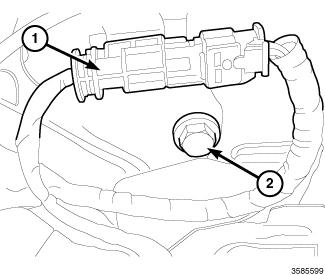

    Fig 2: Crash Sensor Wire Harness Connector & Bolt
    GC0152167Courtesy of CHRYSLER GROUP, LLC
  2. Install the PCM with mounting bracket and securely tighten the bolt (2).
  3. Install the crash sensor wire harness connector (1) to the inner fender.

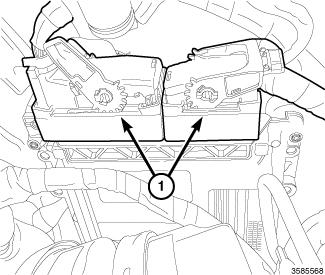

    Fig 3: Powertrain Control Module (PCM) Connectors
    GC0152166Courtesy of CHRYSLER GROUP, LLC
  4. Connect the PCM wire harness connector (1).

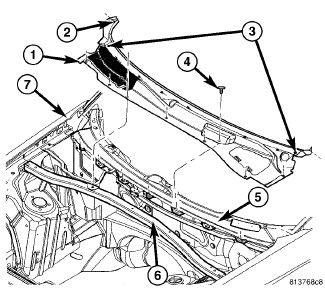

    Fig 4: Removing/Installing Cowl Panel
    GC0080264Courtesy of CHRYSLER GROUP, LLC
  5. Install the strut support brace (6). Tighten bolts to 38 N.m (28 ft. lbs.).
  6. Install the wiper arm linkage. Refer to LINKAGE, WIPER ARM, INSTALLATION .

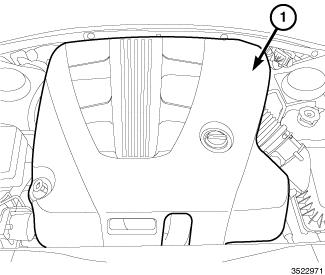

    Fig 5: Engine Cover
    GC0152109Courtesy of CHRYSLER GROUP, LLC
  7. Install the engine cover (1).
  8. Connect the negative battery cable.
