Module, Powertrain Control: Removal: Gas

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

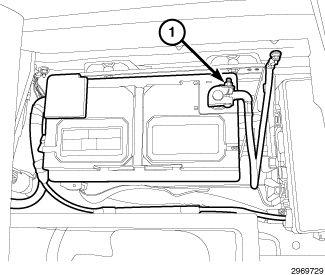

Fig 1: Negative Battery Cable

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable (1).

Fig 2: Cowl Panel 1
Courtesy of CHRYSLER GROUP, LLC
Remove the two push pins (2) that secure the front cowl top panel (1) to the right rear corner of the engine compartment
Remove the front cowl top panel.

Fig 3: Retaining Bolt, PCM Electrical Connectors & PCM
Courtesy of CHRYSLER GROUP, LLC
Remove the Powertrain Control Module (PCM) retaining bolt (1).
Disconnect the PCM electrical connectors (2).
Remove the PCM (3) from the vehicle.

Fig 4: NVH Rubber Bumper, PCM, Bracket & Nuts
Courtesy of CHRYSLER GROUP, LLC
If required, remove the NVH rubber bumper (3) from the PCM (4).
If required, remove the PCM mounting bracket (1) retaining nuts (2) and remove the bracket.
