Diagnostic Test

WARNING: This page is about a different car, the 2012 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

DTC PRESENT
1. With the scan tool, record and erase DTCs.
2. Turn the ignition off, wait 10 seconds, then turn the ignition on.
3. Operate the power liftgate several times if possible.
4. With the scan tool, read the active DTCs.
  Does the scan tool display; B197F-13-POWER LIFTGATE LATCH CONTROL 1 - CIRCUIT OPEN?

  Yes
  - Go To 2.
  No
  - Using the wiring diagram/schematic as a guide, inspect the wiring and connectors for an intermittent condition. Operate the liftgate several times and check for any binding conditions in the latch assembly.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
LIFTGATE LATCH CIRCUIT OPEN

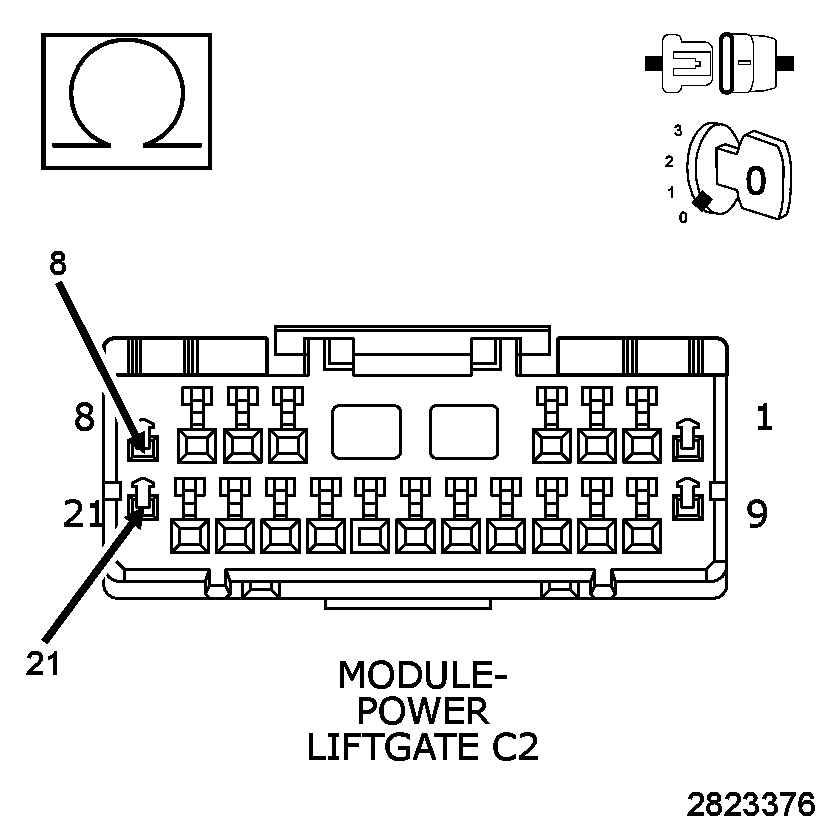

Fig 1: Checking Liftgate Latch Circuit For Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Power Liftgate Module C2 harness connector.
3. Measure the resistance between the (Q84) Liftgate Latch Cinch Driver circuit and the (Q85) Liftgate Latch Release Driver circuit.
  Is the resistance approximately 4.0 Ohms?

  Yes
  - Replace the Power Liftgate Module in accordance with the service information. Refer to MODULE, POWER LIFTGATE CONTROL, REMOVAL .
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
(Q84) LIFTGATE LATCH CINCH DRIVER CIRCUIT OPEN

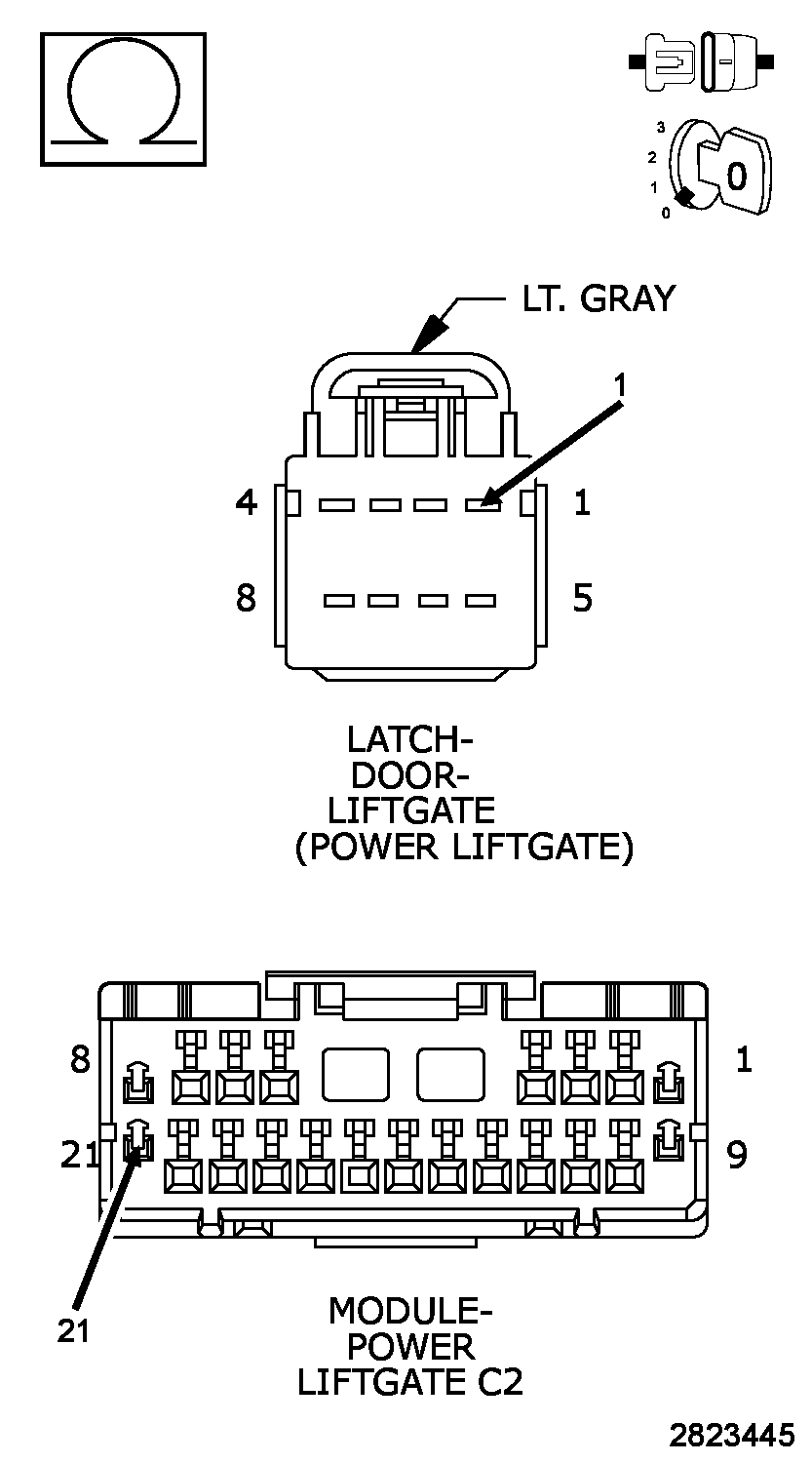

Fig 2: Checking Liftgate Latch Cinch Driver Circuit For Open
Courtesy of CHRYSLER GROUP, LLC
1. Disconnect the Power Liftgate Latch harness connector.
2. Measure the resistance of the (Q84) Liftgate Latch Cinch Driver circuit between the Power Liftgate Module C2 harness connector and the Power Liftgate Latch harness connector.
  Is the resistance below 2.0 Ohms?

  Yes
  - Go To 4.
  No
  - Repair the (Q84) Liftgate Latch Cinch Driver circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
(Q85) LIFTGATE LATCH RELEASE DRIVER CIRCUIT OPEN

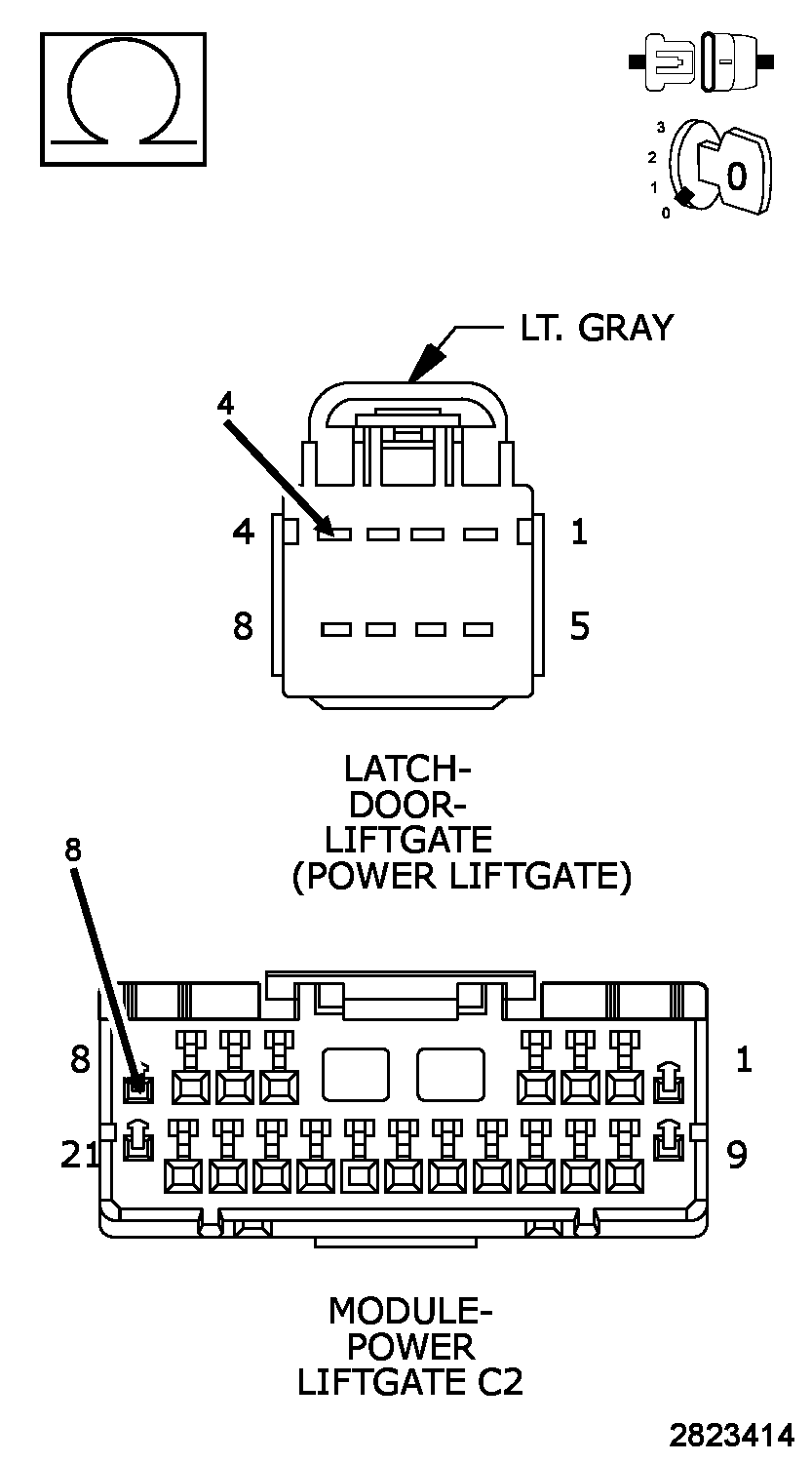

Fig 3: Checking Liftgate Latch Release Driver Circuit For An Open Or High Resistance
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (Q85) Liftgate Latch Release Driver circuit between the Power Liftgate Module C2 harness connector and the Power Liftgate Latch harness connector.
  Is the resistance below 2.0 Ohms?

  Yes
  - Replace the Power Liftgate Latch assembly in accordance with the Service Information and using the scan tool, run the "Latch Home Sector Test". Refer to LATCH, LIFTGATE, REMOVAL .
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Repair the (Q85) Liftgate Latch Release Driver circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
