Module, Door: Removal: Removal

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

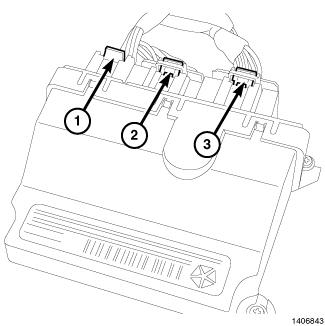

Fig 1: Electrical Connectors
GC0104140Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the trim panel from the inside of the front door. Refer to PANEL, DOOR TRIM, REMOVAL .
  3. Beginning with the black 10-way electrical connector (1), then the brown 20-way electrical connector (2) followed by, if the vehicle is so equipped, the black 12-way electrical connector (3) from the connector receptacles of the door control module.
  4. Remove the four screws that secure the door control module to the front door hardware module carrier.
  5. Remove the door control module from the door hardware module carrier.
