B1D5E-13-Power Seat Switch - Circuit Open: Notes

WARNING: This page is about a different car, the 2015 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

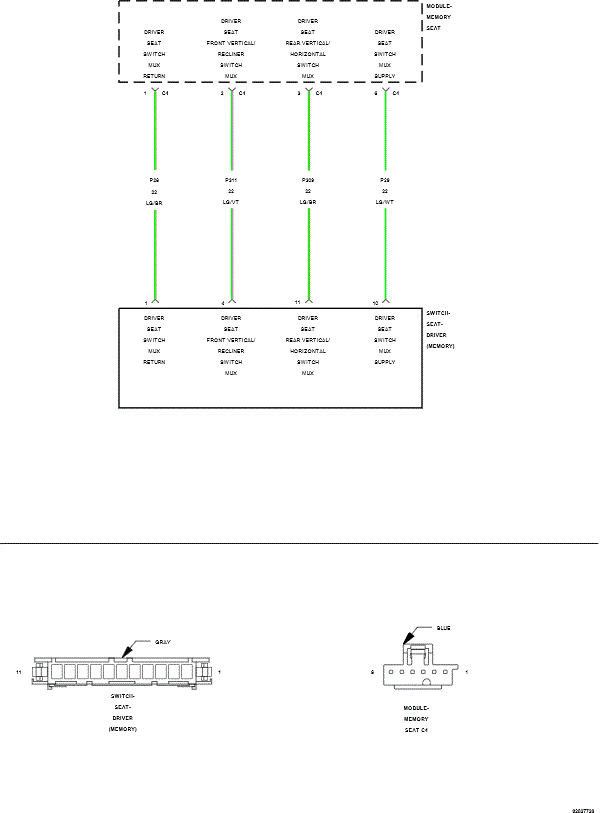

Fig 1: Memory Seat Module Wiring Schematic

Courtesy of CHRYSLER GROUP, LLC
