Gearshift Lever - Instrument Panel Mounted Removal

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

Place the shifter in PARK
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

Fig 1: Identifying Gearshift Cable, Eyelet & Manual Shift Lever
Courtesy of CHRYSLER GROUP, LLC
Remove the gearshift cable retaining clip (4) (if equipped).
Disconnect the gearshift cable (1) from the shift lever (3), and remove cable from bracket (2).
Lower the vehicle.
Remove the instrument panel bezel. Refer to BEZEL, INSTRUMENT CLUSTER .
Remove the instrument panel kneeblocker panel. Refer to INSTRUMENT PANEL .

Fig 2: Gearshift Lever Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the gearshift lever electrical connector.

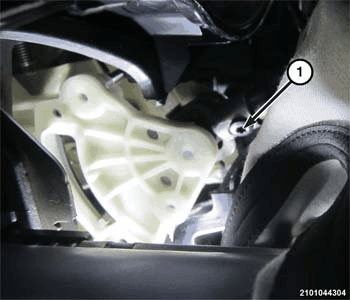

Fig 3: Gearshift Lever Screw
Courtesy of CHRYSLER GROUP, LLC
Remove the gearshift lever screw and pull the gearshift lever out of the shifter assembly.
NOTE:
The gearshift lever will remain in the vehicle.

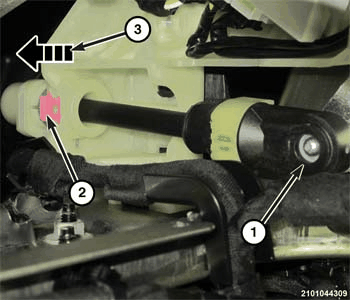

Fig 4: Shifter Assembly Bracket, Lock & Cable End
Courtesy of CHRYSLER GROUP, LLC
Disconnect the gearshift cable end (1) from the shifter assembly, pull the gearshift cable bracket lock (2) outward and remove the gearshift cable from the shifter assembly bracket (3).

Fig 5: Identifying Shifter Cable Routing
Courtesy of CHRYSLER GROUP, LLC
Remove the gearshift cable grommet (3) from the opening in the dash panel (4), and remove the gearshift cable.
