Module, Instrument Panel Cluster: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the instrument cluster bezel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL .

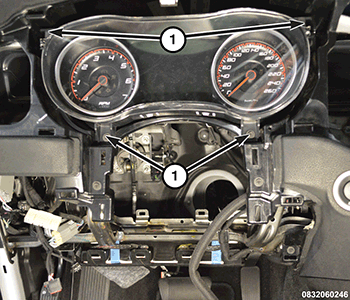

    Fig 1: Instrument Cluster Screws
    GC0170824Courtesy of CHRYSLER GROUP, LLC
  3. Remove the four (1) screws securing the instrument cluster to the instrument panel. The column does not need to be removed to access the screws. Illustration shown with steering column removed for clarity only.
  4. Tilt the cluster forward, and disconnect the wire harness connector.
