B1D93-00-Steering Column Telescope Motor Control Circuit Performance: Notes

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

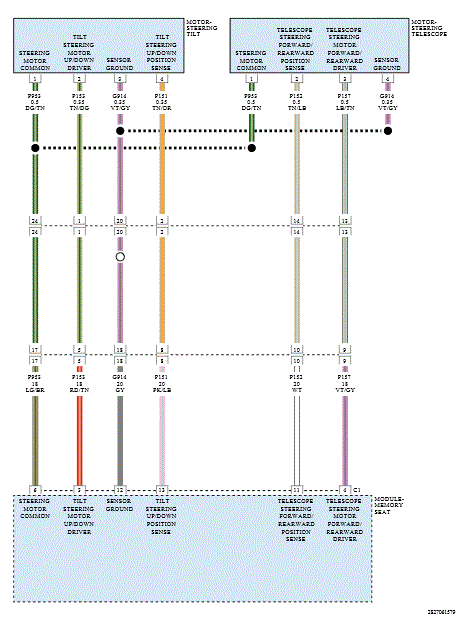

Fig 1: Steering Column - Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
