B25A3-00-Front Left Door Handle Sensor: Notes

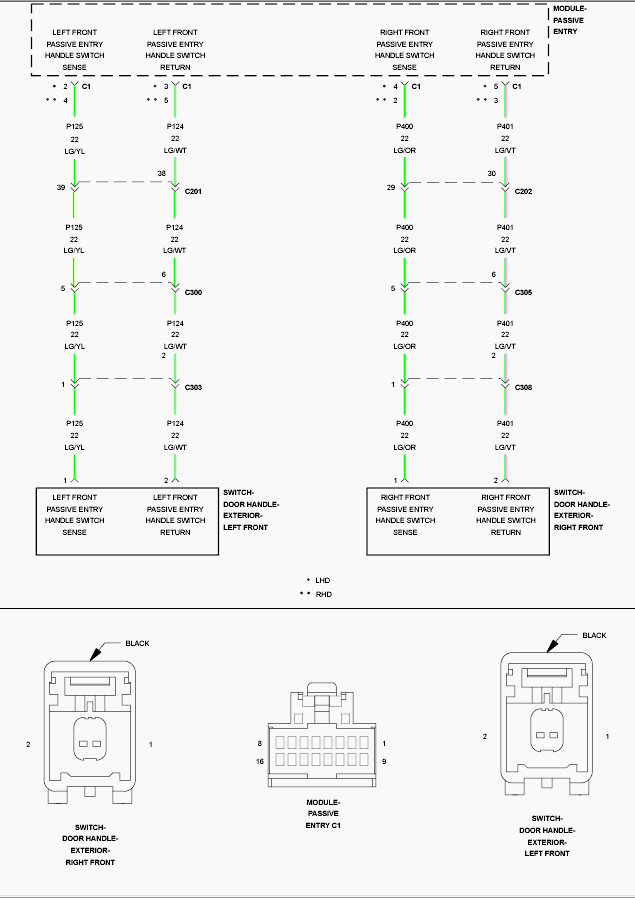

Fig 1: Front Right Door Handle Switch Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

Before proceeding, check the handle for any foreign material, or binding, that could cause a sticking situation to the handle or switch.
