B25A7-00-Trunk/Liftgate Handle Sensor: Notes

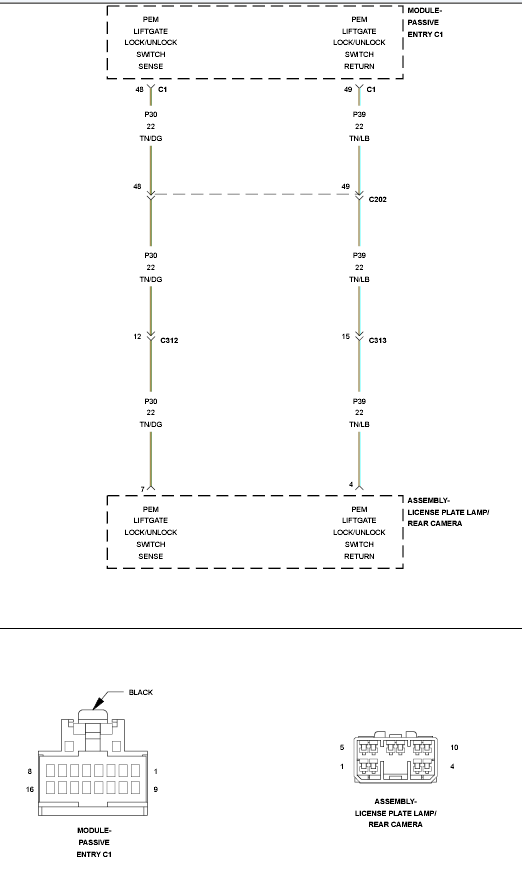

Fig 1: Trunk/Liftgate Door Handle Lock Switch Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

This DTC is set when there is a malfunction with the PEM Lock/Unlock Switch on the License Plate Lamp Bar.
