Diagnostic Test

TEST FOR INTERMITTENT CONDITION
NOTE:
Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE:
  Make sure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, read the module status.
  NOTE:
  Check the TIPM for any active CAN hardware DTCs, perform DTC before proceeding.

  Does the scan tool indicate that the module is active on the bus?

  Yes
  - The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched and partially broken wires and the wiring harness connectors for broken, bent, pushed out and corroded terminals.
  No
  - Go To 2
CHECK THE (Z911) GROUND CIRCUITS FOR AN OPEN

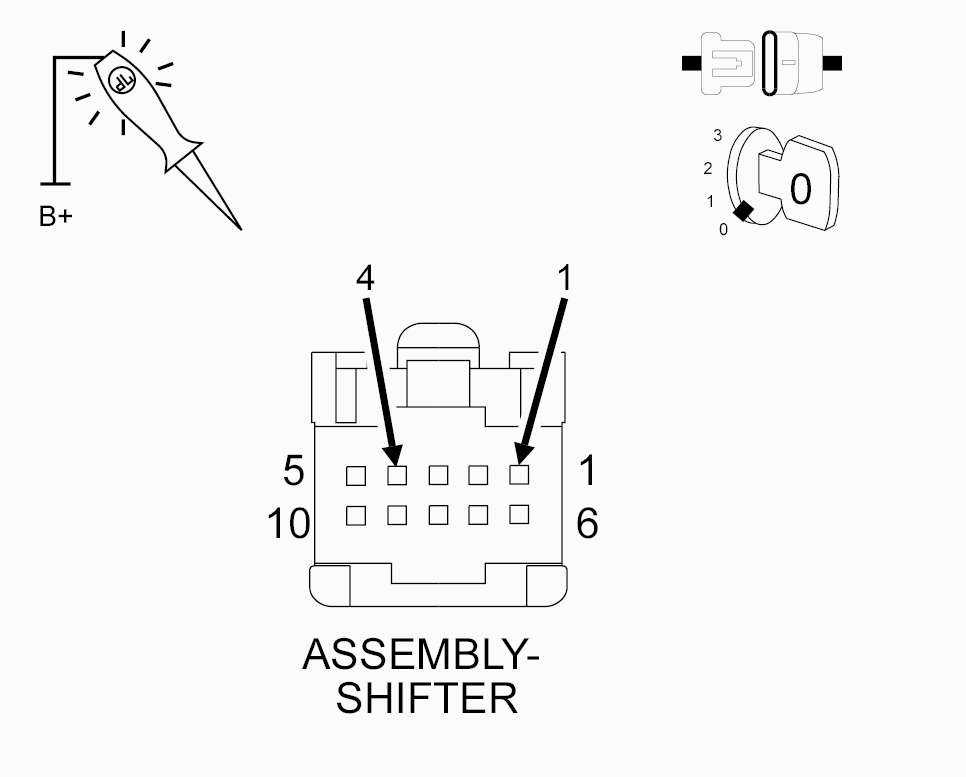

Fig 1: Checking Ground Circuits For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Shifter Assembly harness connector.
3. Using a 12-volt test light connected to 12-volts, check the (Z911) Ground circuits.
  Does the test light illuminate brightly for each circuit?

  Yes
  - Go To 3
  No
  - Repair the open in the (Z911) Ground circuit.
  - Perform the appropriate transmission verification test. For vehicles with NAG1 transmissions. Refer to STANDARD PROCEDURE . For all others, refer to the appropriate Testing & Diagnostics article in Engine Performance .
CHECK THE (F1) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT FOR AN OPEN OR SHORT

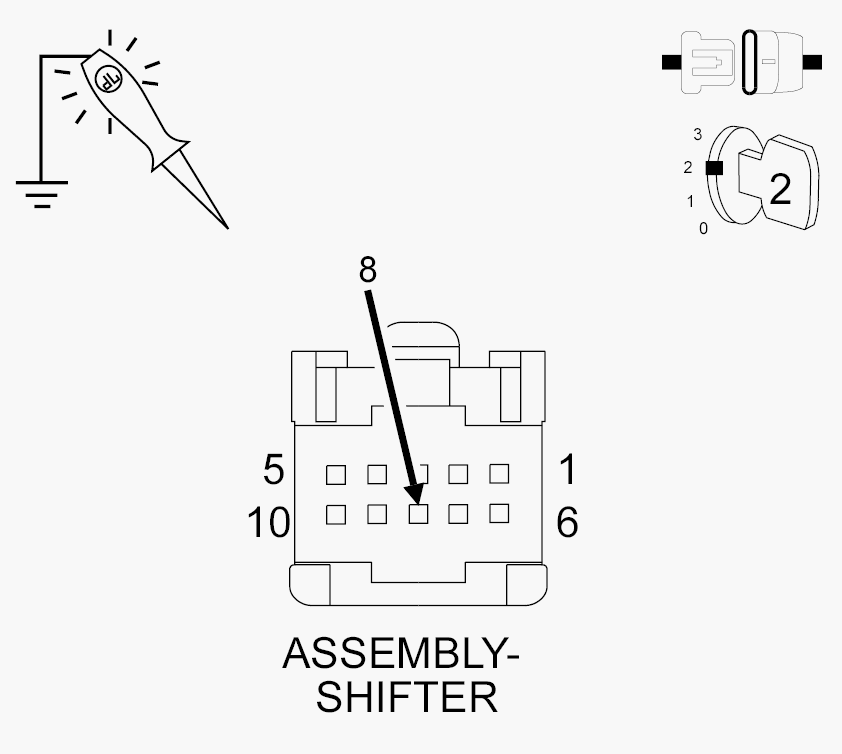

Fig 2: Checking Fused Ignition Switch Output (Run-Start) Circuit For An Open Or Short
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F1) Fused Ignition Switch Output (Run-Start) circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 4
  No
  - Repair the open or short in the (F1) Fused Ignition Switch Output (Run-Start) circuit.
  - Perform the appropriate transmission verification test. For vehicles with NAG1 transmissions. Refer to STANDARD PROCEDURE . For all others, refer to the appropriate Testing & Diagnostics article in Engine Performance .
CHECK THE (D52) AND (D51) CAN C BUS CIRCUITS FOR AN OPEN

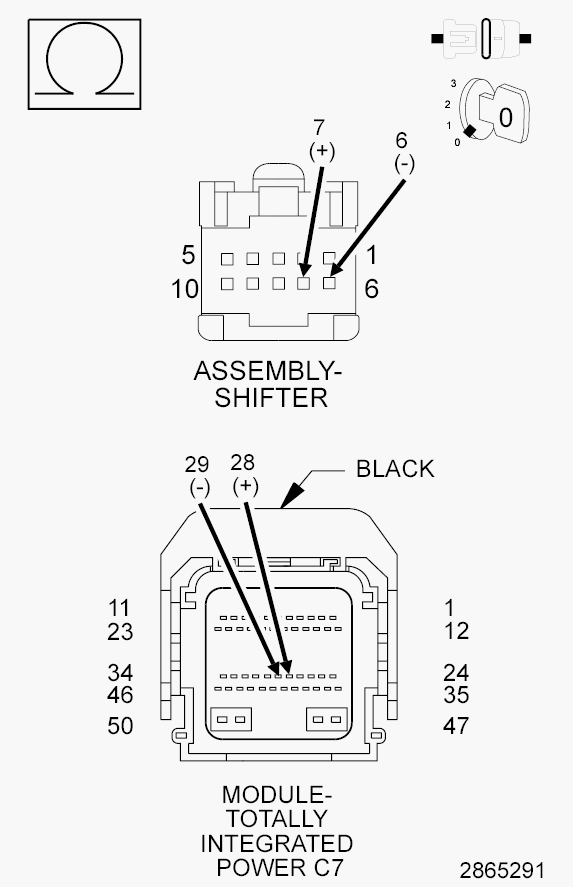

Fig 3: Checking Can C Bus Circuits For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the TIPM C7 harness connector.
3. Measure the resistance of the (D51) CAN C Bus (-) circuit between the Shifter Assembly harness connector and the TIPM C7 harness connector.
4. Measure the resistance of the (D52) CAN C Bus (+) circuit between the Shifter Assembly harness connector and the TIPM C7 harness connector.
  Are the resistances below 5.0 Ohms?

  Yes
  - Replace the ESM, which is integral to the Shifter Assembly, in accordance with the Service Information. For vehicles with NAG1 transmissions. Refer to SHIFTER, TRANSMISSION, REMOVAL . For all others, refer to SHIFTER, TRANSMISSION, REMOVAL .
  - Perform the appropriate transmission verification test. For vehicles with NAG1 transmissions. Refer to STANDARD PROCEDURE . For all others. Refer to the appropriate Testing & Diagnostics article in Engine Performance .
  No
  - Repair the open in the (D52) or (D51) CAN C Bus circuit.
  - Perform the appropriate transmission verification test. For vehicles with NAG1 transmissions. Refer to STANDARD PROCEDURE . For all others. Refer to the appropriate Testing & Diagnostics article in Engine Performance .
