Module, Compass: Description: Description

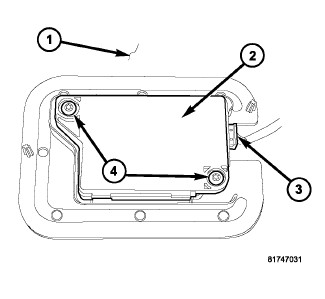

Fig 1: Remote Compass Module

Courtesy of CHRYSLER GROUP, LLC

The Remote Compass Module (RCM) (2) is a separate stand alone module mounted to the top side of the headliner (1) at the left rear of the vehicle. The RCM can be accessed by removing both quarter trim panels and the headliner molding, then carefully lowering the rear of the headliner at the D-pillar area.

If the compass position sensor (Remote Compass Module) is inoperative and requires replacement. Refer to MODULE, COMPASS, REMOVAL .
