Module, Compass: Installation: Installation

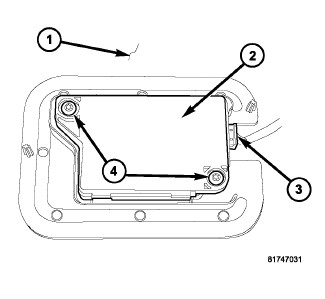

Fig 1: Remote Compass Module
GC0085982Courtesy of CHRYSLER GROUP, LLC
  1. Position the Remote Compass Module (RCM) (2) into the bracket on the upper side of the headliner (1).
  2. Install the RCM fasteners (4).
  3. Connect the electrical connector (3).
  4. Install the headliner assembly. Refer to HEADLINER, INSTALLATION .
  5. Connect the negative battery cable.
  6. Perform the Compass Variance Adjustment. Refer to MODULE, COMPASS, STANDARD PROCEDURE .
  7. Perform the Manual Compass Calibration. Refer to MODULE, COMPASS, STANDARD PROCEDURE .
  8. Verify proper compass operation.
