Module-Powertrain Control C2 (D3838B)

Harness-Family: Engine

Color: ORANGE

Gender: FEMALE

Part Number: 2-1326727-7

Part Description: NGC HEADER CONNECTION - INDEX B

Connector No: D3838B

Option: Standard

Repair Kit Part Number: 05083223AA

Cavity Count: 38

Fig 1: Module-Powertrain Control C2 Connector End View

Courtesy of CHRYSLER

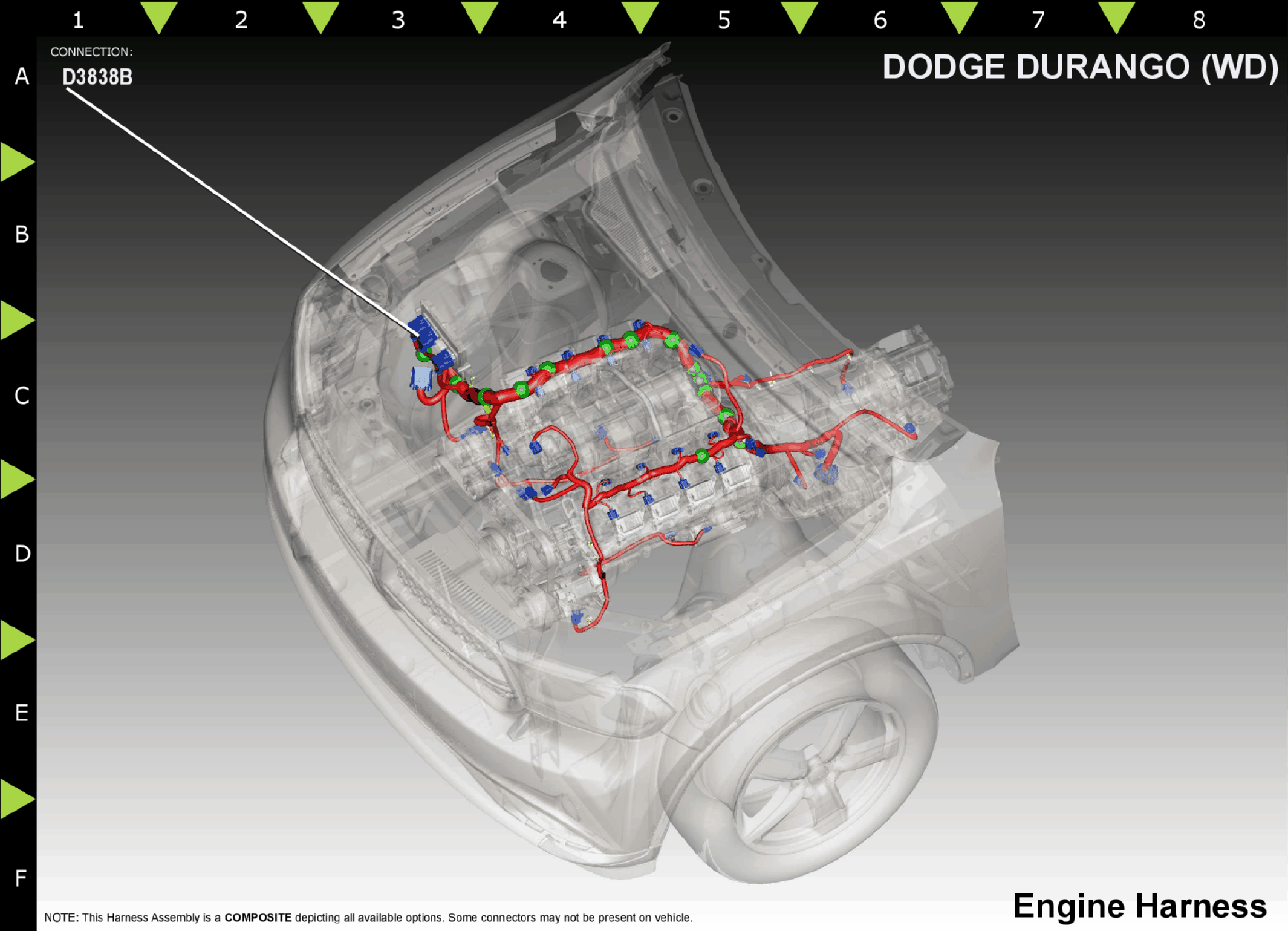

Fig 2: Module-Powertrain Control C2 Component Location

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K10	DB	16	COIL CONTROL 6	N/A
10	K19	DB	16	COIL CONTROL 1	3.6L
10	K86	YL	16	COIL CONTROL 1	5.7L
11	K14	BR	16	INJECTOR CONTROL 4	N/A
12	K13	BR	16	INJECTOR CONTROL 3	N/A
13	K12	BR	16	INJECTOR CONTROL 2	N/A
14	K11	BR	16	INJECTOR CONTROL 1	N/A
15	K922	BR	20	TP SENSOR RETURN	N/A
16	K453	BR	20	MDS SOL CONTROL 6	5.7L
17	K199	BR	20	O2 2/1 HEATER CONTROL	N/A
18	K99	BR	20	O2 1/1 HEATER CONTROL	5.7L
19	K125	BR	16	GEN FIELD CONTROL	N/A
2	K16	DB	16	COIL CONTROL 5	N/A
20	K2	VT	20	ECT SIGNAL	5.7L
21	K22	BR	20	TP 1 SIGNAL	N/A
22	K441	DB	20	CMP SIGNAL 2	3.6L
23	K1	DG	18	MAP SIGNAL	5.7L
24	K942	BR	20	KS 1 RETURN	N/A
25	K42	DB	20	KS 1 SIGNAL	5.7L
27	K900	DB	20	SENSOR GROUND	N/A
28	K122	BR	20	TP 2 SIGNAL	N/A
29	K855	BR	20	5 VOLT SUPPLY	N/A
3	K15	DB	16	COIL CONTROL 4	5.7L
30	K21	LG	20	IAT SIGNAL	5.7L
31	K41	DB	20	O2 1/1 SIGNAL	N/A
32	K904	LB	20	O2 RETURN (DOWNSTREAM)	N/A
33	K43	LG	20	O2 2/1 SIGNAL	N/A
34	K44	GY	20	CMP SIGNAL	N/A
35	K24	BR	20	CKP SIGNAL	N/A
36	K242	BR	20	KS 2 SIGNAL	N/A
37	K924	PK	20	KS 2 RETURN	5.7L
38	K126	DB	18	ETC MOTOR (-)	N/A
4	K58	BR	16	INJECTOR CONTROL 6	N/A
5	K38	BR	16	INJECTOR CONTROL 5	N/A
6	K124	DB	18	ETC MOTOR (+)	N/A
7	K18	DG	16	COIL CONTROL 3	3.6L
7	K93	DB	16	COIL CONTROL 3	5.7L
8	K78	BR	20	VVT INTAKE CONTROL 2	3.6L
9	K17	DB	16	COIL CONTROL 2	3.6L
9	K85	DB	16	COIL CONTROL 2	5.7L
