Module, Hands Free: Removal: Removal

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

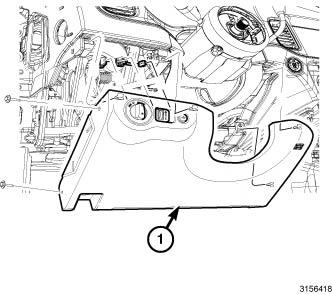

Fig 1: Steering Column Opening Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate battery negative cable.
Remove the steering column opening cover (1). Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

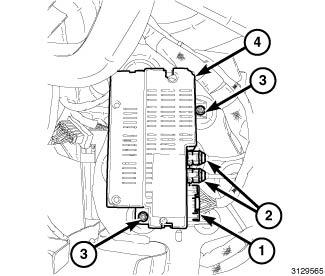

Fig 2: HFM Electrical & USB Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the HFM electrical (1) and USB connectors (2).
Remove the HFM retainers.
Remove the HFM (4) from the mounting bracket.
