Module, Hands Free: Installation: Installation

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

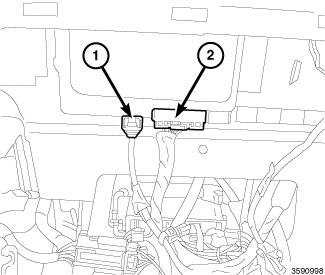

Fig 1: Connector & USB Connector

Courtesy of CHRYSLER GROUP, LLC

Connect the electrical connector (2) to the HFM and the USB connector (1) if equipped.
Install the hands free module mounting fasteners.

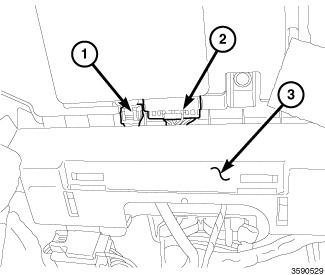

Fig 2: Trim Piece & Connectors
Courtesy of CHRYSLER GROUP, LLC
Install the trim piece (3) in front of the Hands Free Module (HFM).
Install the HVAC control panel. Refer to CONTROL, A/C AND HEATER, INSTALLATION .
Connect the battery negative cable.
