Front Seat Memory Switch - Removal

REMOVAL

NOTE:
Take the proper precautions to protect the door handle and bezel from cosmetic damage while performing this procedure.





1. Disconnect and isolate the battery negative cable.

2. Remove the driver door handle and place it on a workbench Front Door Handle.

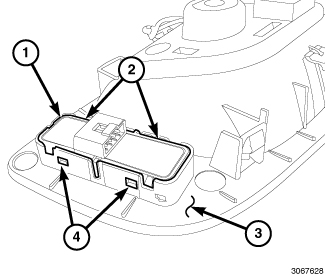

3. Using an appropriate flat bladed tool, gently disengage the four retaining tabs (2 and 4) that secure the memory seat switch (1) to the back of the driver door handle bezel (3).

4. Remove the memory seat switch from the driver door handle bezel.
