INSTALLATION

CAUTION:
Each wire connector is individually keyed to its respective receptacle on the back of the A/C-heater control. Be sure to note the color and location of each connector when reinstalled to the back of the A/C-heater control. Do not force any connector onto the A/C-heater control. Failure to follow this caution can damage the A/C-heater control system.

NOTE:

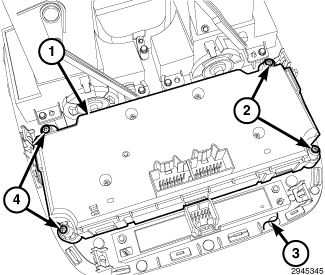

LHD model shown. RHD model similar.





1. Position the A/C-heater control (1) into the instrument panel center bezel (3).

2. Install the four screws (2 and 4) that secure the A/C-heater control to the center bezel. Tighten the screws to 2 Nm (17 in. lbs.).

3. Install the instrument panel center bezel Instrument Panel Center Bezel - Installation.

4. Reconnect the negative battery cable.

5. Calibrate the A/C-heater control HVAC System Test.
