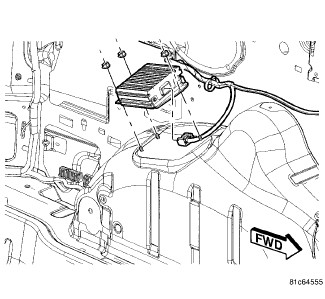

Power Inverter Module - Removal






REMOVAL






1. Disconnect and isolate the battery negative cable.

2. Remove the left rear quarter trim panel. Quarter Trim Panel - Removal.

3. Disconnect the electrical connector.

4. Remove the inverter mounting fasteners.

5. Remove the inverter module.
