B212C-13-Ignition Run/Start Input - Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

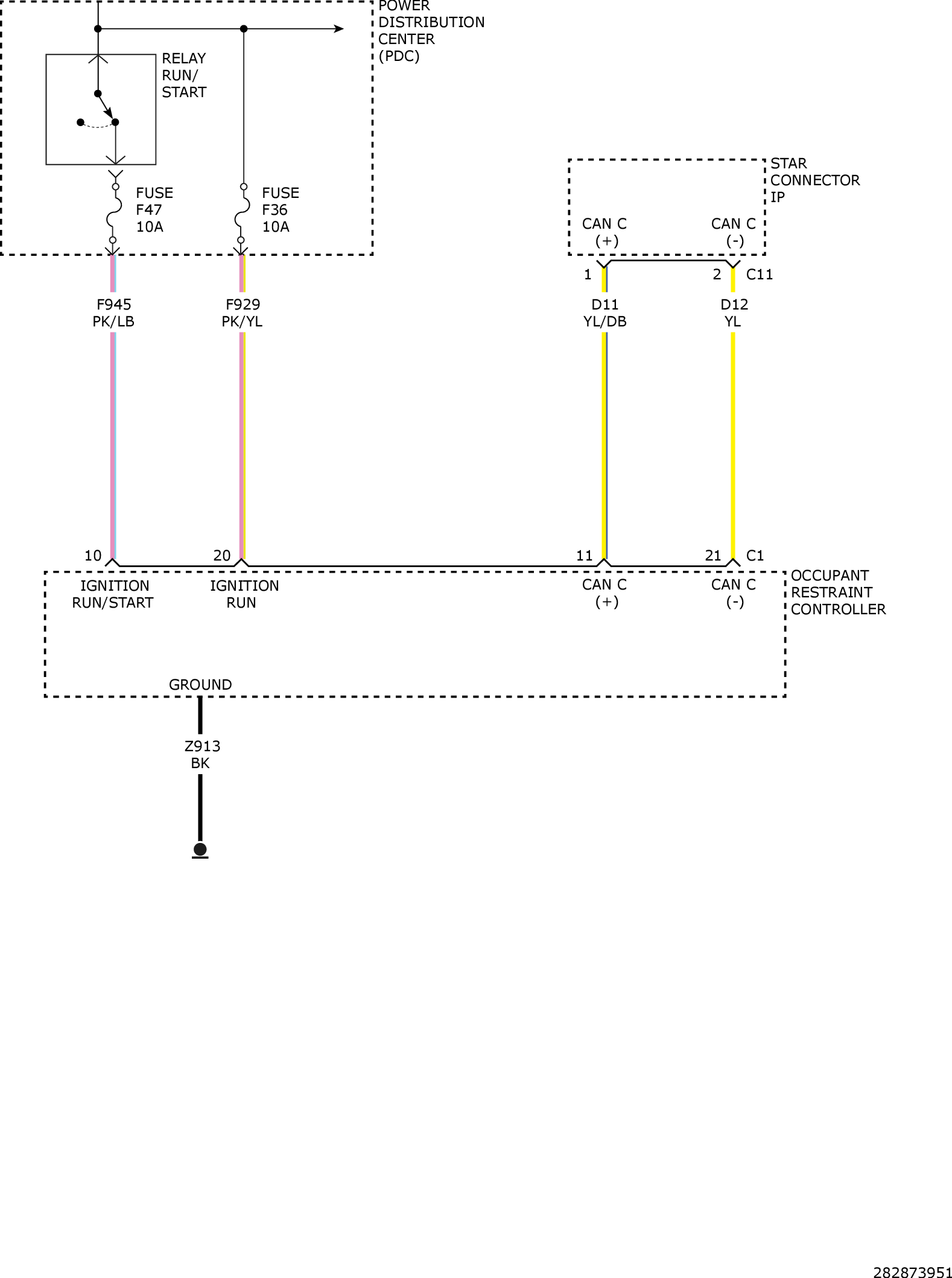

Fig 1: Occupant Restraint Controller Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
