C211B-92-Ignition Run/Start Input Circuit - Performance Or Incorrect Operation: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

If any other DTCs are present, repair them first before continuing with this diagnostic procedure.

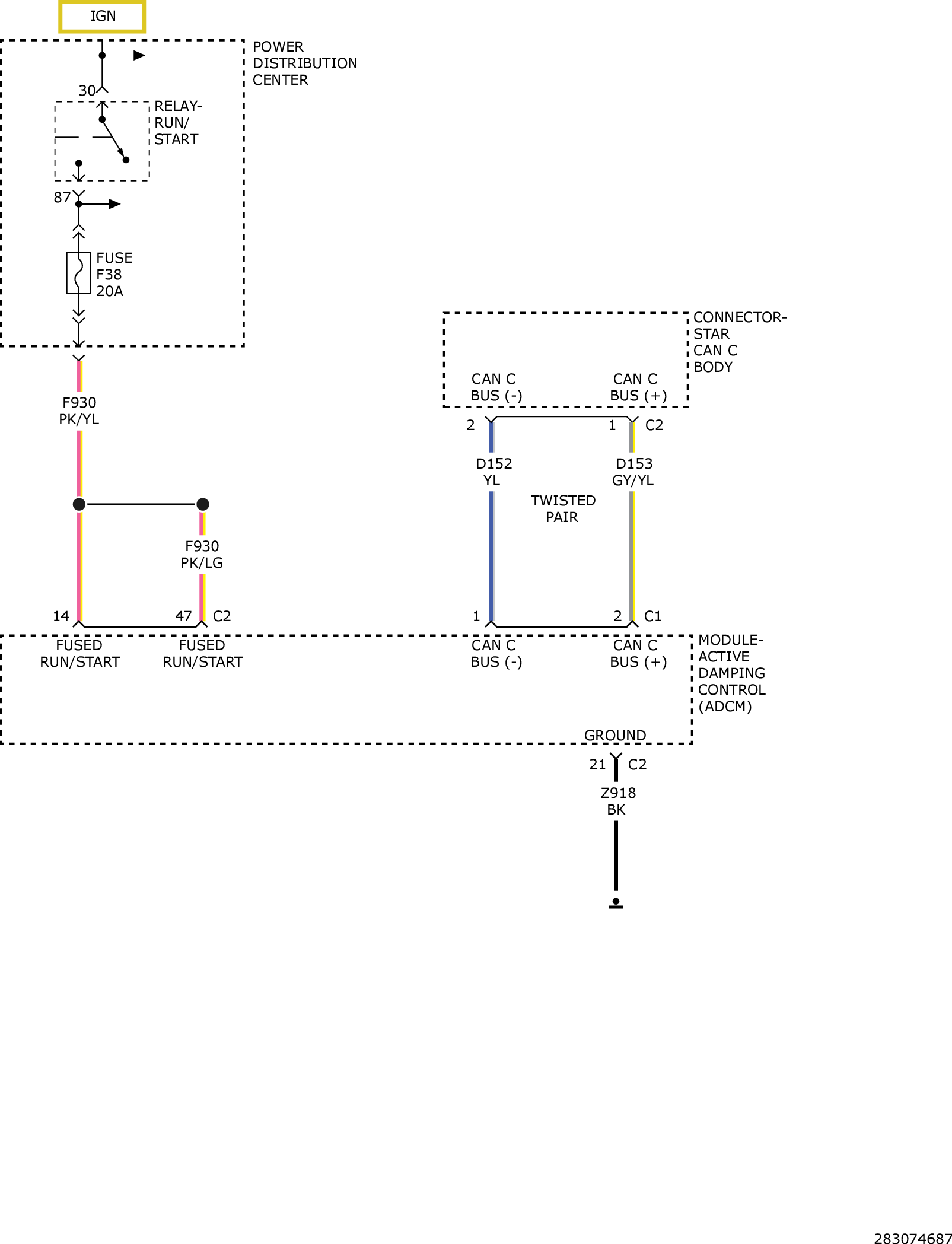

Fig 1: Active Damping Control Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
