B1F05-13-ELECTROCHROMATIC Mirror Control Circuit-Circuit Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

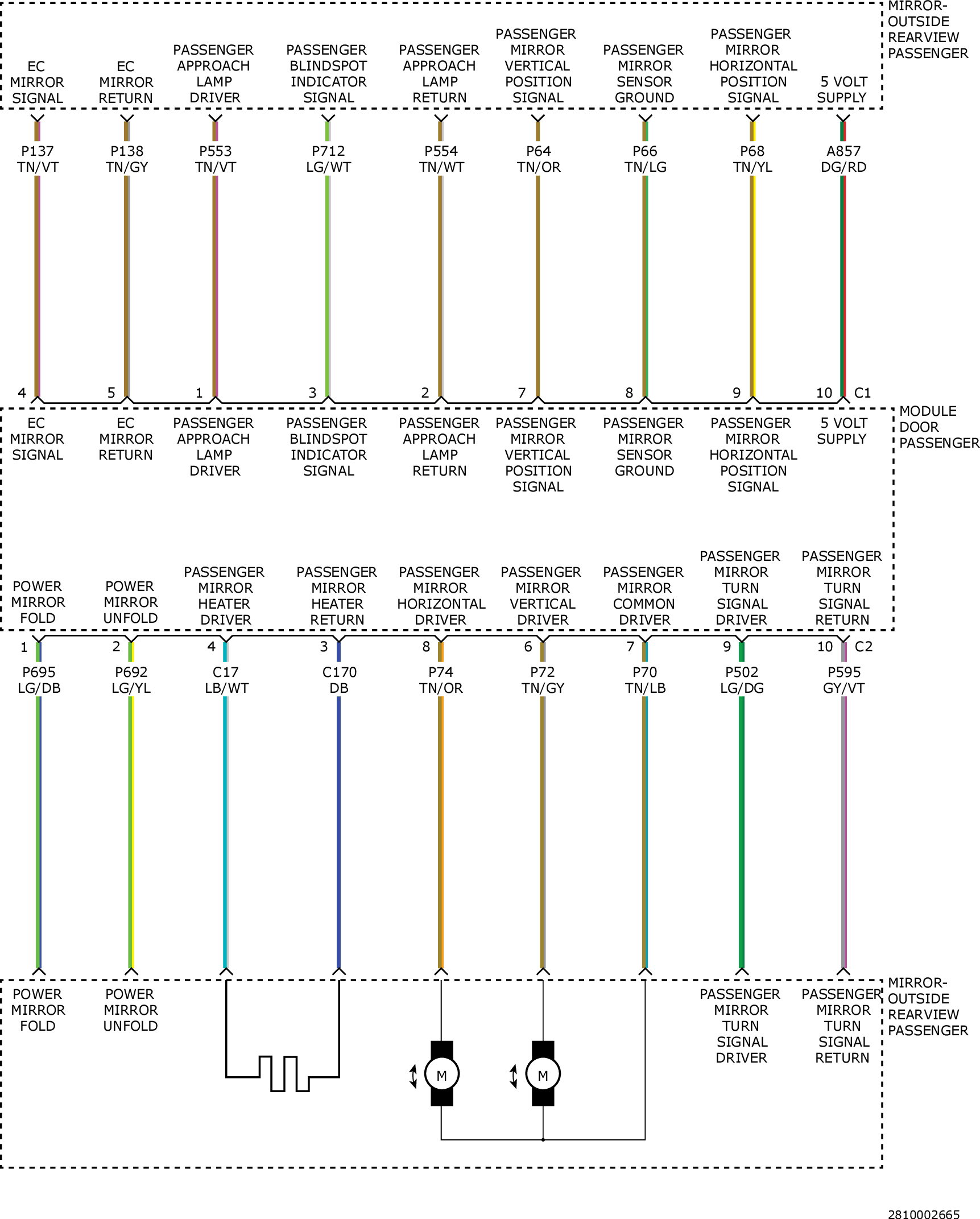

Fig 1: Passenger Outside Rearview Mirror Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
