Inline-Front End Module/Headlamp Dash 2

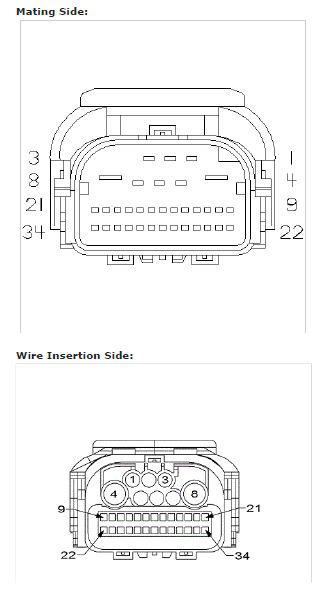

Fig 1: Inline-Front End Module/Headlamp Dash 2 Connector End View (1 of 4)

Courtesy of CHRYSLER

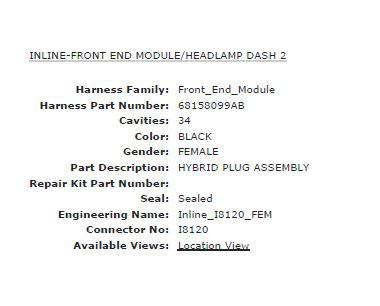

Fig 2: Inline-Front End Module/Headlamp Dash 2 Connector End View (2 of 4)

Courtesy of CHRYSLER

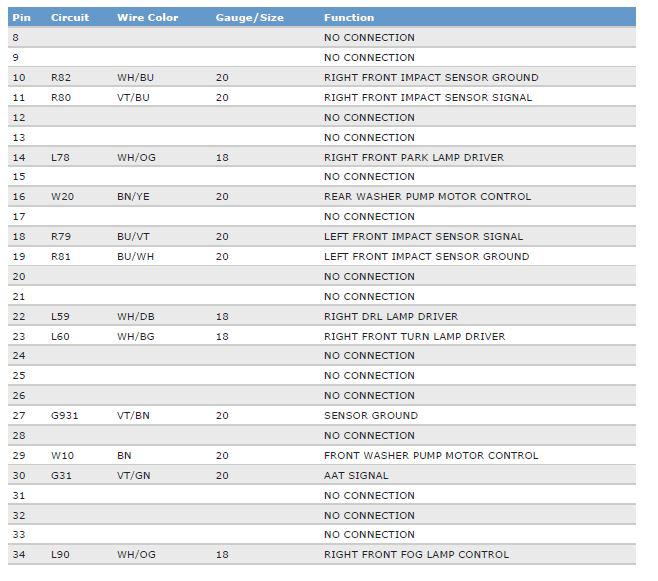

Fig 3: Inline-Front End Module/Headlamp Dash 2 Connector End View (3 of 4)

Courtesy of CHRYSLER

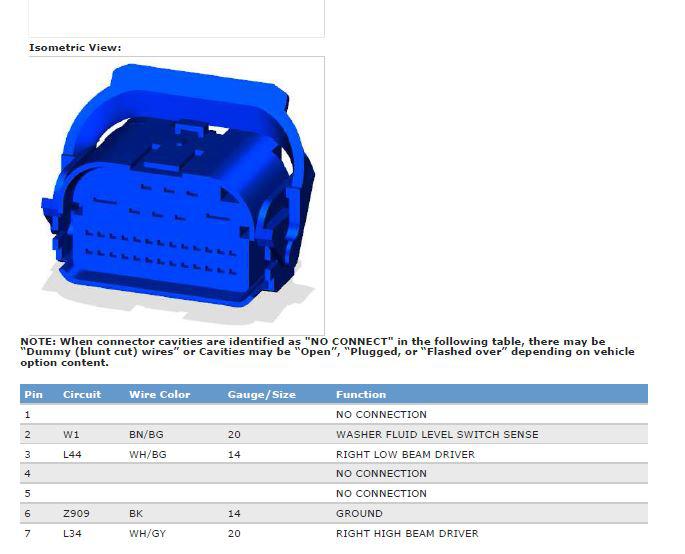

Fig 4: Inline-Front End Module/Headlamp Dash 2 Connector End View (4 of 4)

Courtesy of CHRYSLER

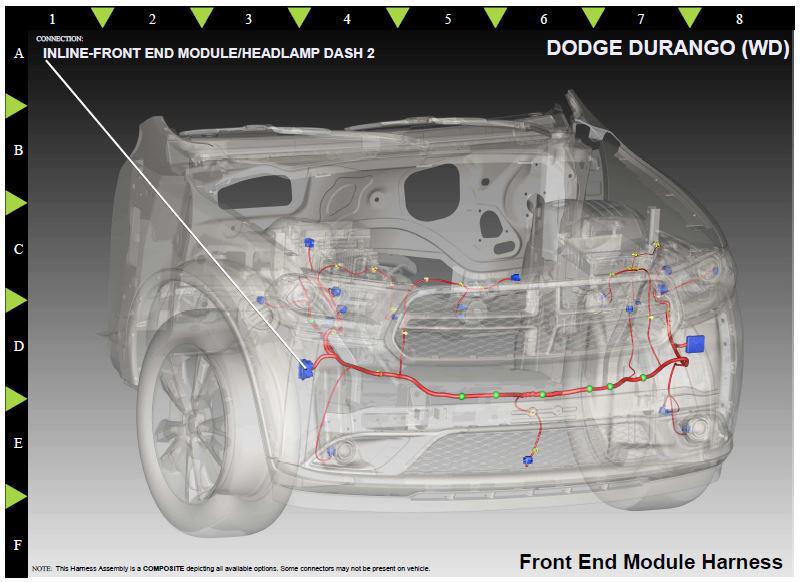

Fig 5: Inline-Front End Module/Headlamp Dash 2 Component Location

Courtesy of CHRYSLER
