Module-Body Control C5/E (D3806E)

Harness-Family: Body

Color: ~~

Gender: FEMALE

Part Number: 13673750

Part Description: Not Available

Connector No: D3806E

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 48

Fig 1: Module-Body Control C5/e Connector End View

Courtesy of CHRYSLER

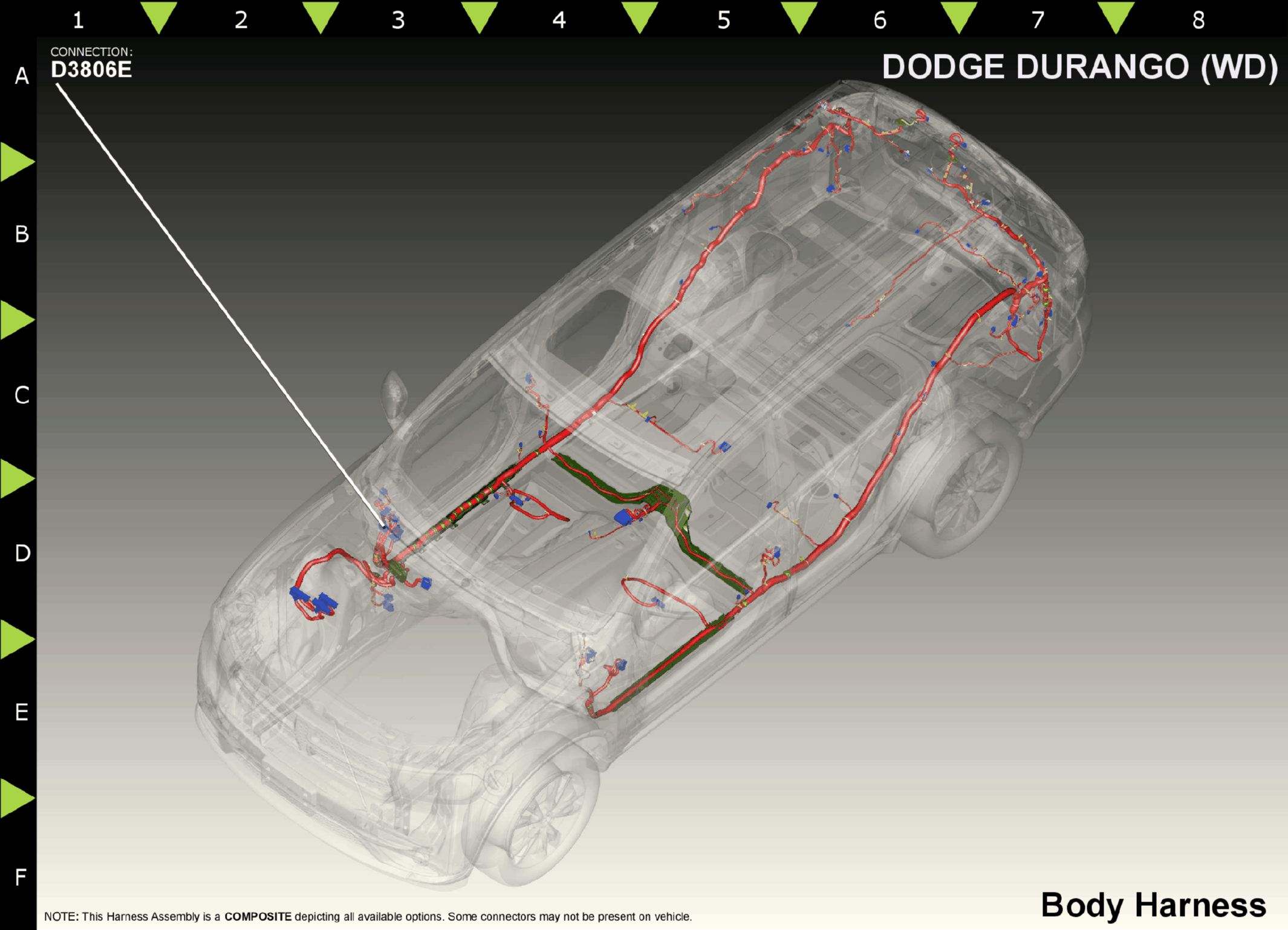

Fig 2: Module-Body Control C5/e Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

L16

WT/OR

0.8

RIGHT BACKUP LAMP DRIVER

N/A

L54

WT/LG

0.8

RIGHT STOP LAMP DRIVER

N/A

L63

WT/DG

0.8

LEFT REAR TURN LAMP DRIVER

N/A

L72

WT/OR

0.5

RIGHT REAR PARK LAMP DRIVER

N/A

G76

VT/YL

0.5

RIGHT REAR DOOR AJAR SWITCH SENSE

N/A

P305

LG/LB

0.5

ACCESSORY DELAY RELAY CONTROL

N/A

L311

WT/OR

0.5

LEFT HEADLAMP RELAY CONTROL

N/A

P307

LG/GY

0.5

ACCESSORY DELAY RELAY CONTROL

N/A

P675

TN/BK

0.5

HDRST REL 3RD ROW RLY SIG

N/A

B25

GY/BK

0.5

PARK BRAKE SWITCH SENSE

N/A

DB/GY

0.5

FUEL LEVEL SIGNAL 2

N/A

G109

BR/WT

0.5

FUEL LEVEL SENSE RETURN

N/A

DB/WT

0.5

FUEL LEVEL SENSOR SIGNAL

N/A

WT/DB

0.8

LICENSE PLATE LAMP DRIVER

N/A

L656

WT/DG

0.5

RIGHT REAR TURN SIGNAL CONTROL

N/A

L658

WT/BR

0.5

TRAILER TOW BACKUP LAMP RELAY CONTROL

N/A

L657

WT/LG

0.5

TRAILER TOW TAIL LAMP RELAY CTRL

N/A

D45

0.5

CAN C (+)

N/A

D46

0.5

CAN C (-)

N/A

K619

BR/OR

0.5

IGNITION RUN CONTROL OUTPUT

N/A

L310

TN/WT

0.5

RIGHT HEADLAMP RELAY CONTROL

N/A

D403

OR/DB

0.5

LIN BUS CBC 3

N/A

W17

BR/LG

0.5

REAR WIPER PARK SWITCH SENSE

N/A

W12

BR/OR

0.5

REAR WIPER RELAY CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
