Module-Power-Blower Motor-Rear (D6608A)

Harness-Family: HVAC_Rear

Color: BLACK

Gender: FEMALE

Part Number: 12041429

Part Description: Not Available

Connector No: D6608A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 5

Fig 1: Module-Power-Blower Motor-Rear Connector End View

Courtesy of CHRYSLER

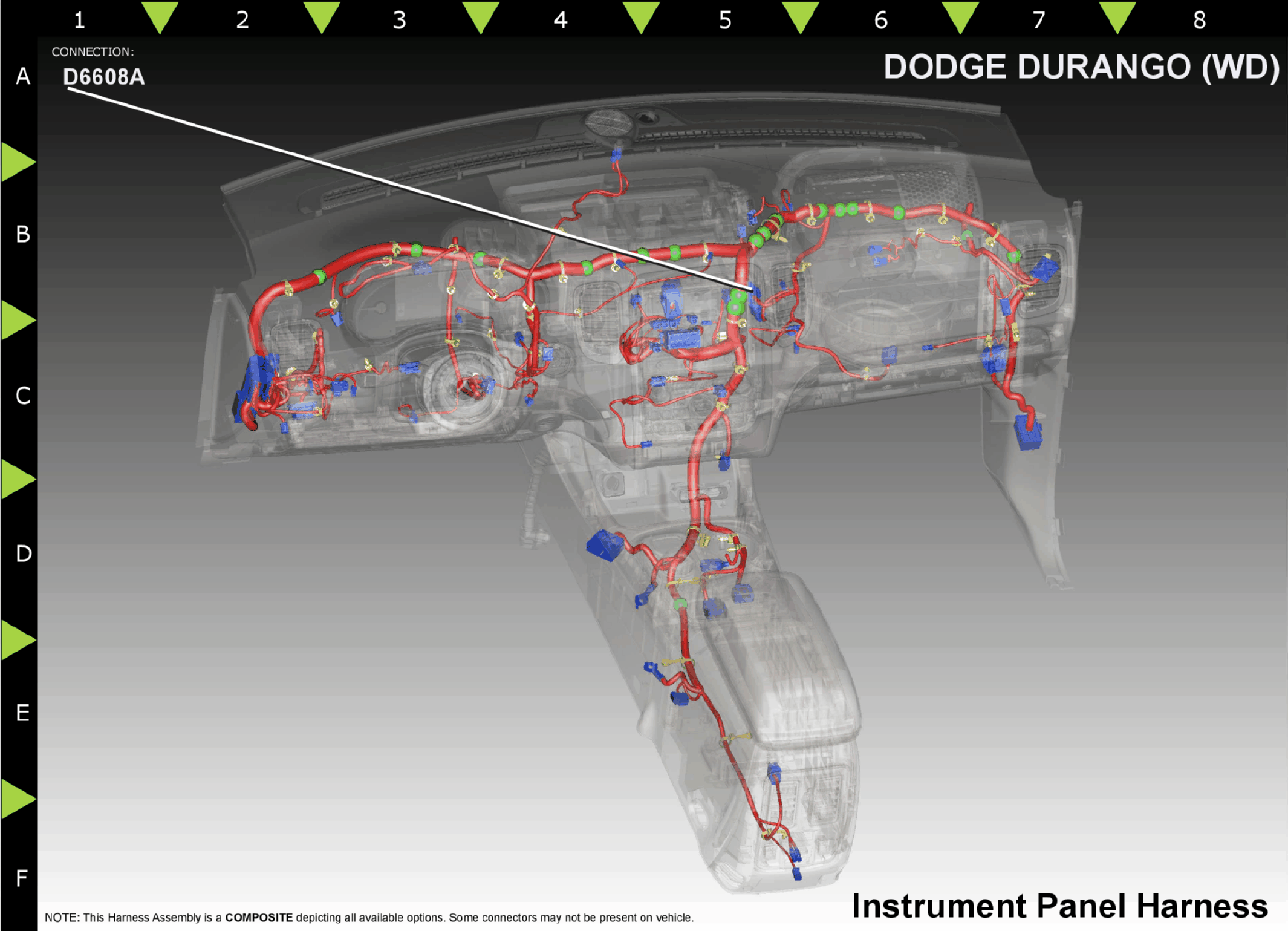

Fig 2: Module-Power-Blower Motor-Rear Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z923

3.0

GROUND

N/A

C57

REAR BLOWER MOTOR CONTROL

N/A

C51

DB/DG

3.0

FUSED REAR BLOWER MOTOR RELAY OUTPUT

N/A

C931

BK/WT

3.0

REAR FAN SENSE RETURN

N/A

C31

3.0

REAR FAN SENSE

N/A

⁽¹⁾	Pins not listed are not used for this connector
