Module-Steering Control C4 (D3816D)

Harness-Family: Airbag

Color: ~~

Gender: FEMALE

Part Number: PPI0001461

Part Description: SRS CONNECTOR AK2 FERRITE

Connector No: D3816D

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 2

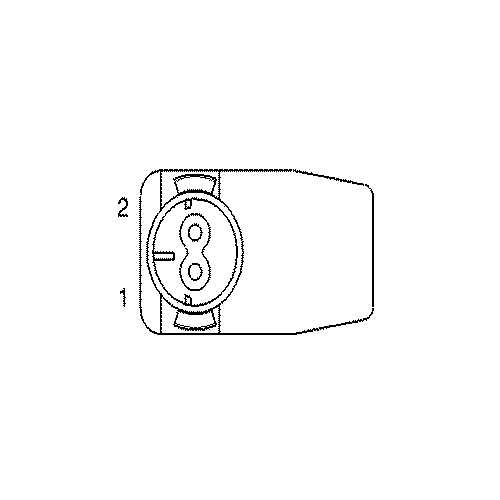

Fig 1: Module-Steering Control C4 Connector End View
GCWD1006458Courtesy of CHRYSLER

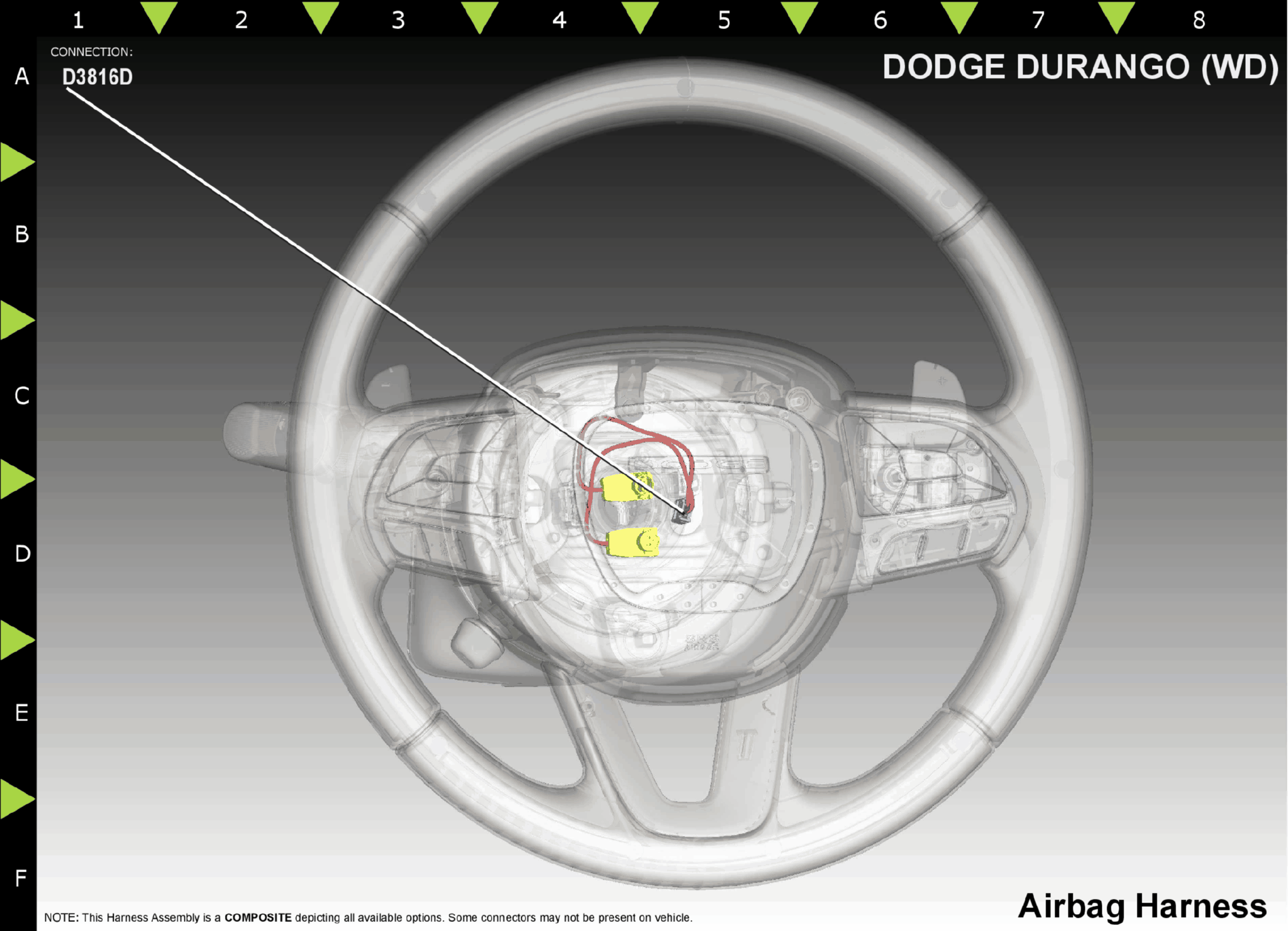

Fig 2: Module-Steering Control C4 Component Location
GCWD1174383Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
D1 R43 RD 20 DRIVER SQUIB 1 LINE 2 N/A
D2 R45 YL 20 DRIVER SQUIB 1 LINE 1 N/A
(1) Pins not listed are not used for this connector
