Module-Steering Control C5 (D3816E)

Harness-Family: Airbag

Color: YELLOW

Gender: FEMALE

Part Number: PPI0001462

Part Description: SRS CONNECTOR AK2 FERRITE

Connector No: D3816E

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 2

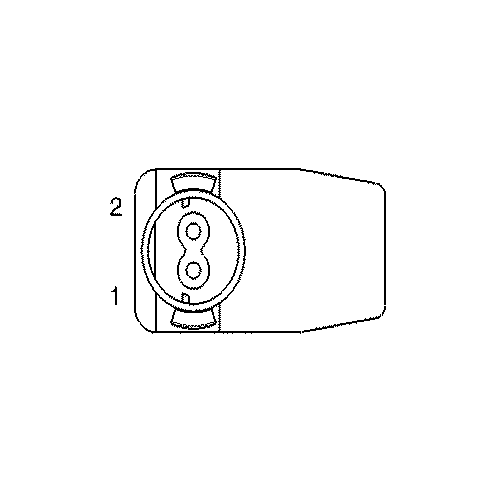

Fig 1: Module-Steering Control C5 Connector End View
GCWD1006521Courtesy of CHRYSLER

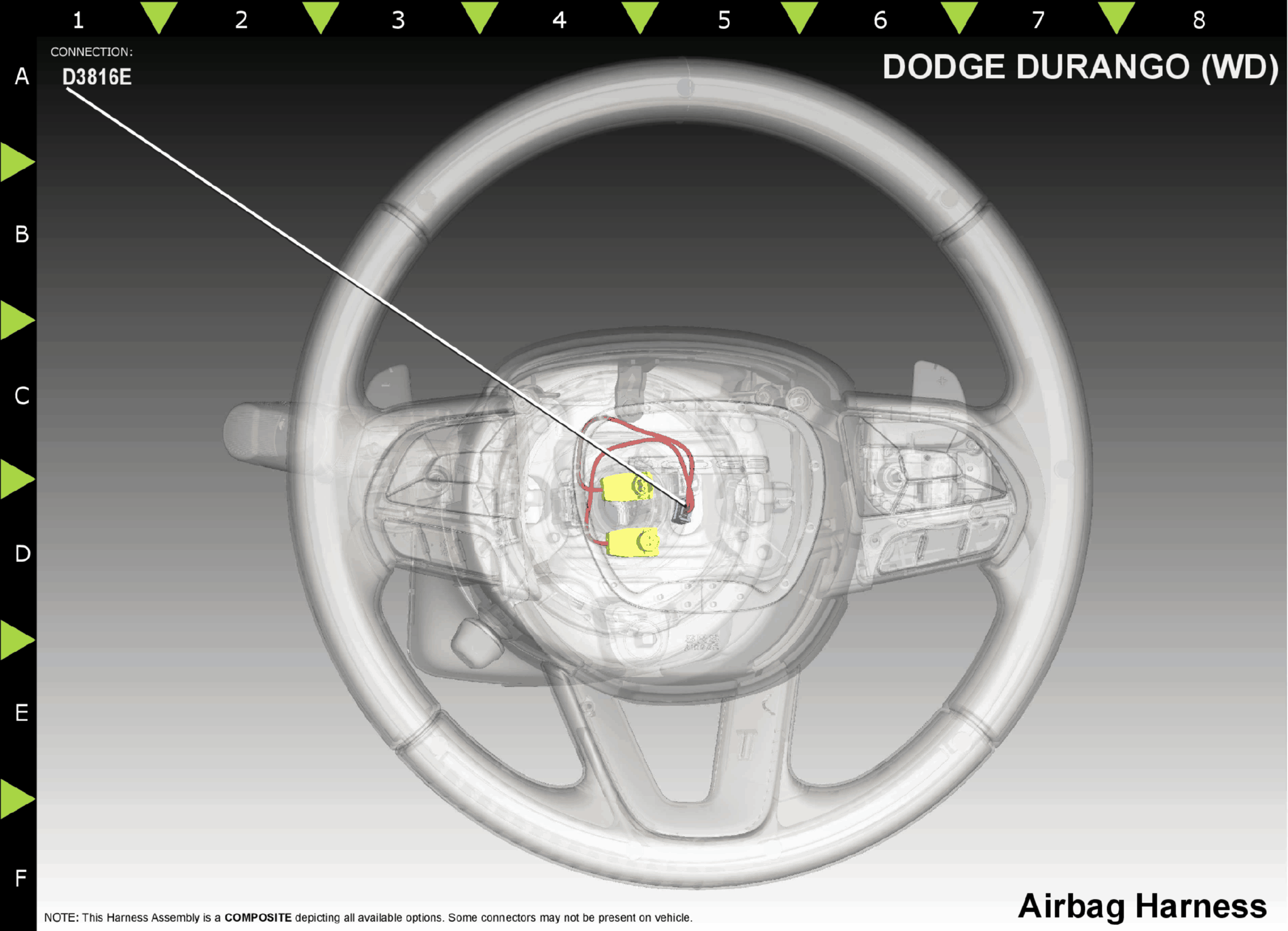

Fig 2: Module-Steering Control C5 Component Location
GCWD1174379Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
E1 R61 RD 20 DRIVER SQUIB 2 LINE 2 N/A
E2 R63 LB 20 DRIVER SQUIB 2 LINE 1 N/A
(1) Pins not listed are not used for this connector
